Shimano WH-RX180-TL-R12-700C (-4889A) Rear Wheel 12-speed (MICRO SPLINE) 12/11-speed (HG spline L)

WH-RX180-TL-R12-700C (-4889A) Rear Wheel 12-speed (MICRO SPLINE) 12/11-speed (HG spline L) WH Wheels - Laufräder

Shimano WH Wheels - Laufräder WH-RX180-TL-R12-700C (-4889A) Rear Wheel 12-speed (MICRO SPLINE) 12/11-speed (HG spline L)

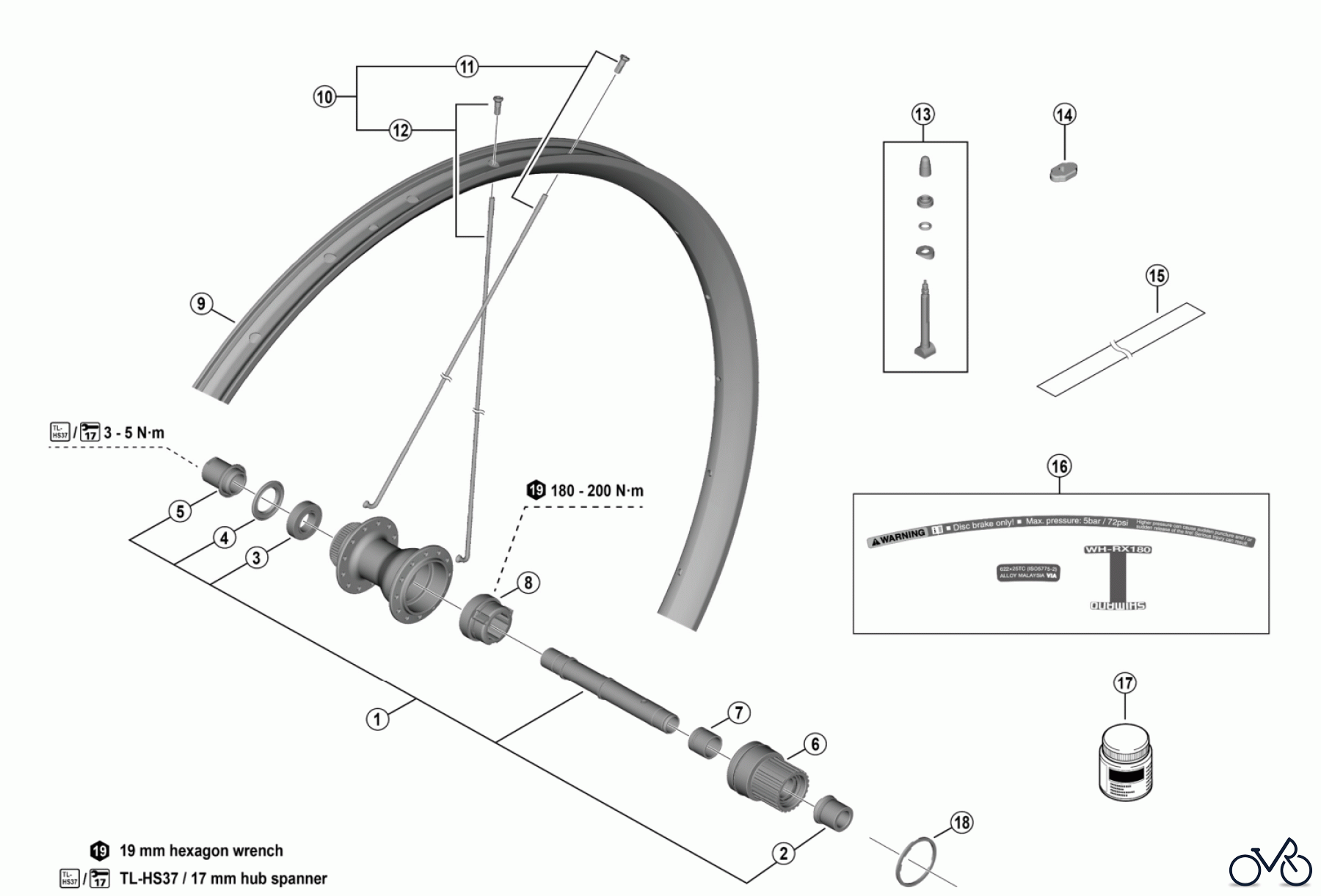

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-RX180-TL-R12-700C (-4889A) Rear Wheel 12-speed (MICRO SPLINE) 12/11-speed (HG spline L). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3KJ98010	Complete hub axle Y3KJ98010
2	Y-3KJ98020	Right cap Y3KJ98020
3	Y-3JV9801T	Sealed cartridge bearing (15 x 28 x 7) Y3JV9801T
4	Y-26D10000	Seal ring Y26D10000
5	Y-3JV98020	Left-hand lock nut Y3JV98020
6	Y-3JV98030	Freewheel body unit (MICRO SPLINE) Y3JV98030
6	Y-3KJ98030	Freewheel body unit (HG spline L) Y3KJ98030
7	Y-3JV9802T	Bush Y3JV9802T
8	Y-3JV98040	Inner unit with bearing Y3JV98040
9	--	Rim {24H}
10	--	Spoke unit {spoke (288 mm x 12 pcs. / 290 mm x 12 pcs.) / nipple (24 pcs.)}
11	Y-0X698010	Left-hand Spoke (290 mm/1 pc.) and nipple (1 pc.) Y0X698010
12	Y-0X798010	Right-hand spoke (288 mm/1 pc.) and nipple (1 pc.) Y0X798010
13	Y-0KL98010	Valve unit Y0KL98010
14	Y-4RJ10000	Valve tool Y4RJ10000
15	Y-0X69801T	Tubeless tape Y0X69801T
16	Y-0X698020	Rim sticker unit Y0X698020
17	Y-3B980000	Grease for freehub 50 g Y3B980000
18	Y-4T724000	Low spacer (1.85 mm) for (HG spline L) 11-speed Y4T724000
