Shimano WH-M9220-TL-F15-B-29 -5124

WH-M9220-TL-F15-B-29 -5124 WH Wheels - Laufräder

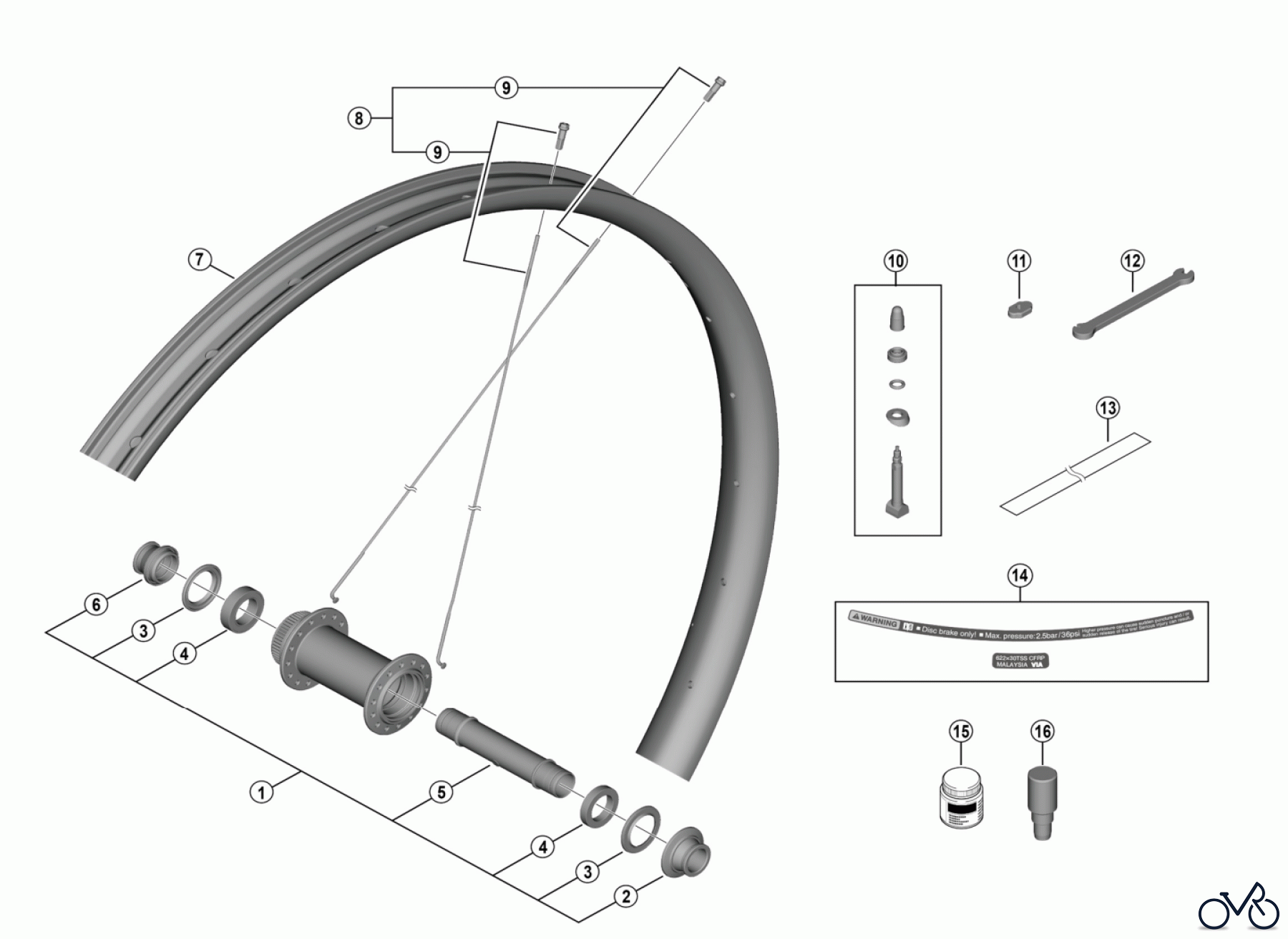

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-M9220-TL-F15-B-29 -5124. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2LF98010	Complete hub axle Y2LF98010
2	Y-2LF98020	Right cap Y2LF98020
3	Y-27X14000	Seal ring Y27X14000
4	Y-3KG9802T	Sealed cartridge bearing (17 x 30 x 7 / CN) Y3KG9802T
5	Y-2LF98030	Hub axle Y2LF98030
6	Y-2LF98040	Left cap Y2LF98040
7	--	Rim {28H}
8	--	Spoke unit {spoke (299 mm x 28 pcs.) / nipple (28 pcs.)}
9	Y-0TZ98010	Spoke (299 mm/1 pc.) and nipple (1 pc.) Y0TZ98010
10	Y-0TW98040	Valve unit Y0TW98040
11	Y-4RJ10000	Valve tool Y4RJ10000
12	Y-0MK14000	TL-WHR92 Nipple wrench 3.4 Y0MK14000
13	Y-0TW9802T	Tubeless tape Y0TW9802T
14	Y-0TZ98020	Rim sticker unit Y0TZ98020
15	Y-38Z98000	Seal grease for freehub (50 g) Y38Z98000
16	Y-2LF9802T	TL-HB017 Hub bearing remover Y2LF9802T
