Sram HYDRAULIC DISC BRAKE - LEVERS CODE™ (2008-2010) - HYDRAULIC DISC BRAKE - LEVERS

CODE™ (2008-2010) - HYDRAULIC DISC BRAKE - LEVERS HYDRAULIC DISC BRAKE - LEVERS

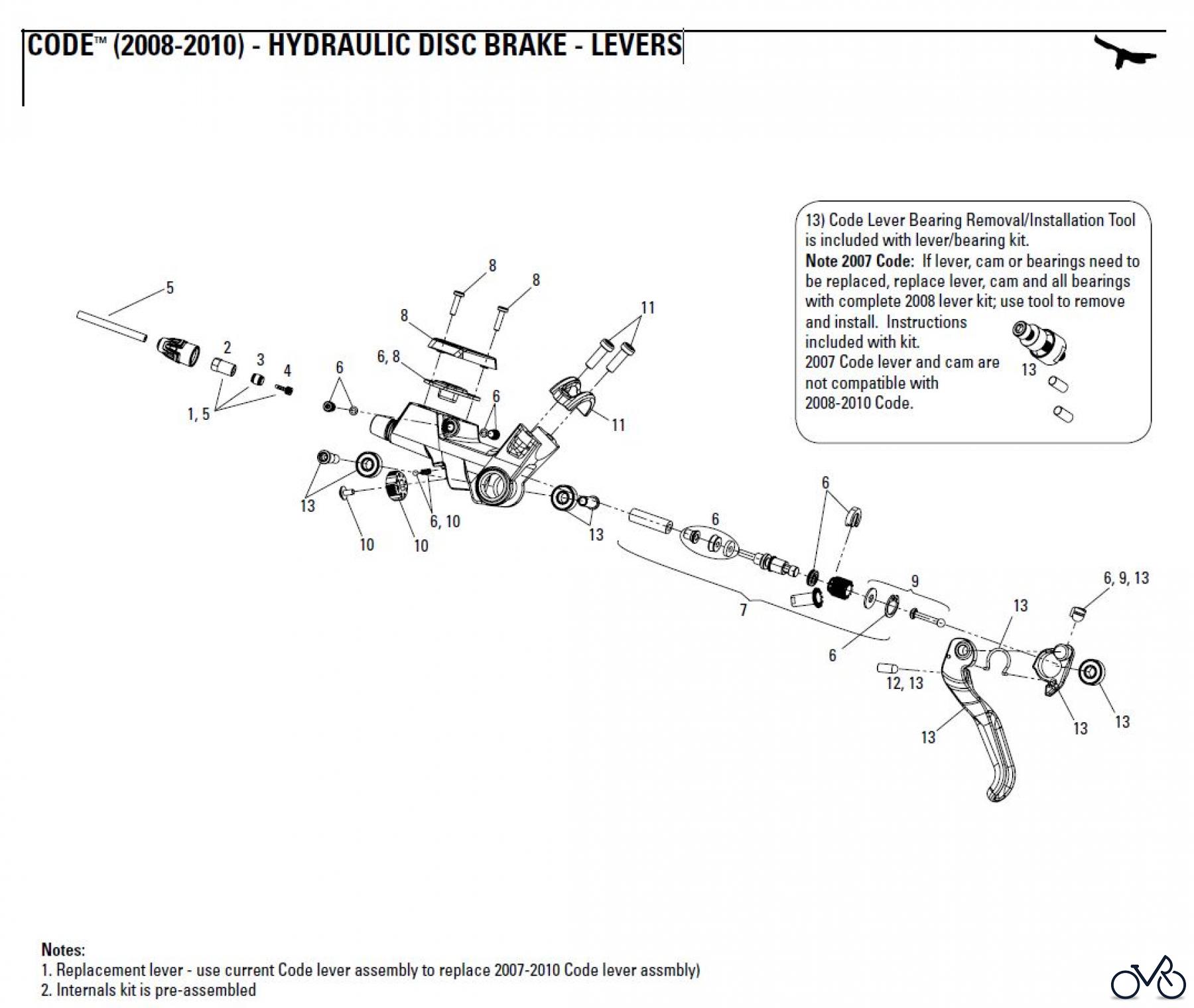

Here you will find the spare parts drawing for Sram avid HYDRAULIC DISC BRAKE - LEVERS CODE™ (2008-2010) - HYDRAULIC DISC BRAKE - LEVERS. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
1	115.309.765.000	Hydraulic Disc Brake Hose Fitting Kit, Qty 1 (threaded hose barb, comp fitting, comp nut) 115.309.765.000
2	115.309.766.000	Hydraulic Disc Brake Compression Hose Nut, Qty 5 115.309.766.000
3	115.311.555.000	Hydraulic Disc Brake Compression Hose Fitting, Qty 10 115.311.555.000
4	115.311.556.000	Hydraulic Disc Brake Hose Barb, Threaded, Qty 10 115.311.556.000
5	00.5016.168.010	Hydraulic Line Kit - Code, Code R, Elixir 3, Elixir 1, Juicy 3, DB 3/1, 2000mm, Black, Qty 1 00.5016.168.010
5	00.5016.168.020	Hydraulic Line Kit - Code, Code R, Elixir 3, Elixir 1, Juicy 3, DB 3/1, 2000mm, White, Qty 1 00.5016.168.020
6	115.415.013.000	Code Lever Service Kit 1 Lever 115.415.013.000
7	115.315.015.000	Code Lever Internals/Gear Kit Qty 1 115.315.015.000
8	115.215.016.000	Code Reservoir Black, Qty 1 115.215.016.000
9	115.215.017.000	Code PushRod Kit Qty 1 115.215.017.000
10	115.315.014.000	Code Pad Adjuster Knob Kit, Qty 1 115.315.014.000
11	115.315.012.010	Code Lever Split Clamp Kit, Black Qty 1 (steel hardware) 115.315.012.010
12	115.315.017.000	Code Lever Adjust Screw Qty 2 115.315.017.000
13	115.215.018.000	Lever Blade/Bearing/Pivot/Cam/Bearing Press Tool Qty 1 (includes - bearings, bearing press tool, pivot bolt, cam, cam spring and lever) - 2007-2010 Code 115.215.018.000
ns	115.215.013.120	Lever Assy, Silver, Aluminum Lever - Code (complete, no hose) 2011-2014 115.215.013.120
