Shimano RD-TX75-3102

RD-TX75-3102 RD Rear Derailleur - Schaltwerk

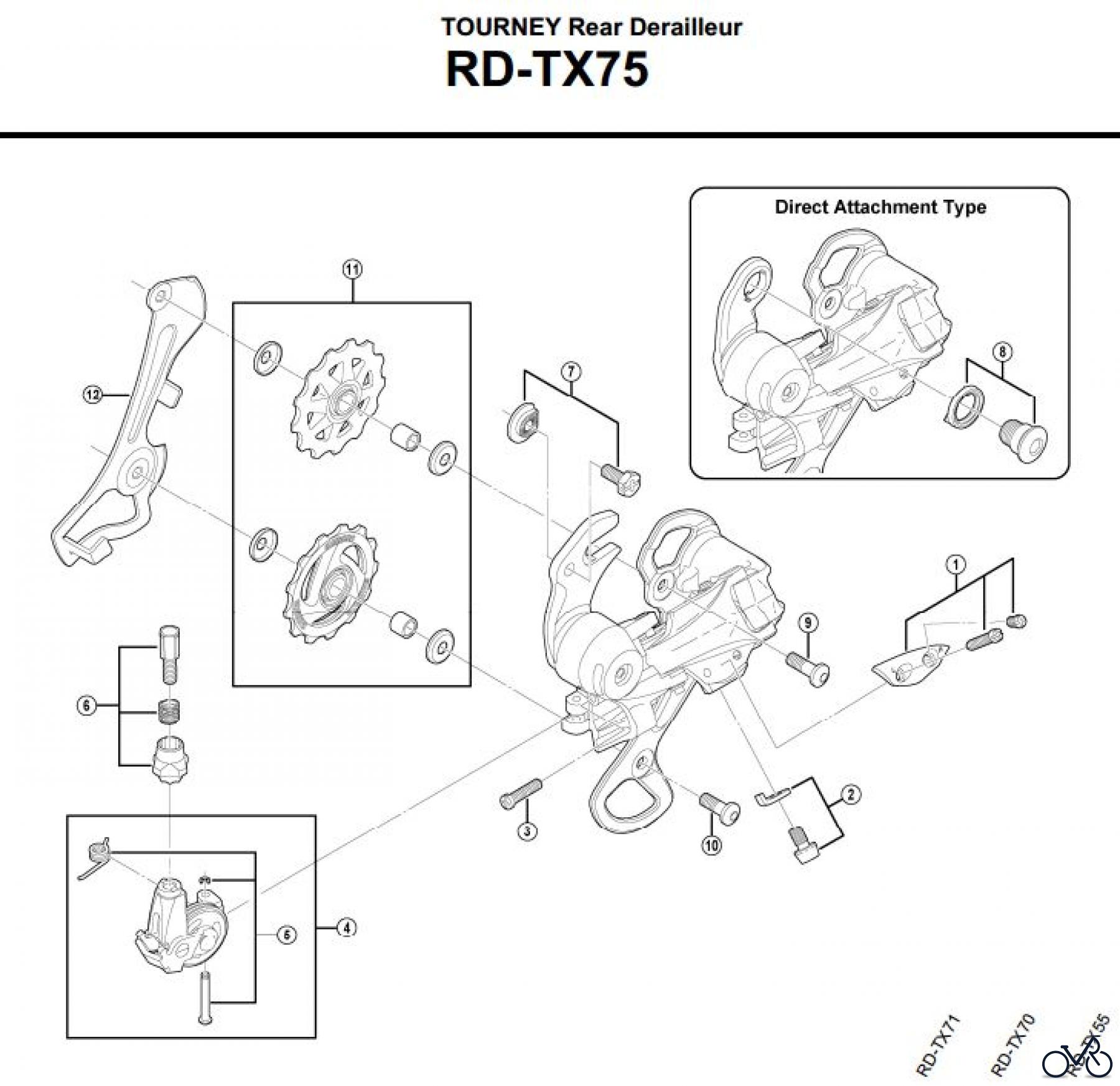

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-TX75-3102. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y5WU98010	Stroke Adjusting Screws (M4 x 15.3) & Plate Y5WU98010
2	Y5V898010	Cable Fixing Bolt (M5 x 8.5) & Plate Y5V898010
3	Y5WF14000	B-Tension Adjusting Screw (M4 x 17.5) Y5WF14000
4	Y5WT98020	Cable Roller Unit Y5WT98020
5	Y5V898050	Cable Roller Axle Unit Y5V898050
6	Y5V898030	Cable Adjusting Bolt Unit Y5V898030
7	Y54M98030	Adapter Bolt (M5 x 11.5) & Nut Y54M98030
8	Y5WS98020	B-Axle & Spacer (Direct Attachment Type) Y5WS98020
9	Y5TW35010	Guide Pulley Bolt (M5 x 15.2) Y5TW35010
10	Y5TW35040	Tension Pulley Bolt (M5 x 13.35) Y5TW35040
11	Y5WS98030	Guide & Tension Pulley Unit Y5WS98030
12	Y5WS09000	Inner Plate Y5WS09000
