Shimano RD-M772-2707A

RD-M772-2707A RD Rear Derailleur - Schaltwerk

Shimano RD Rear Derailleur - Schaltwerk RD-M772-2707A

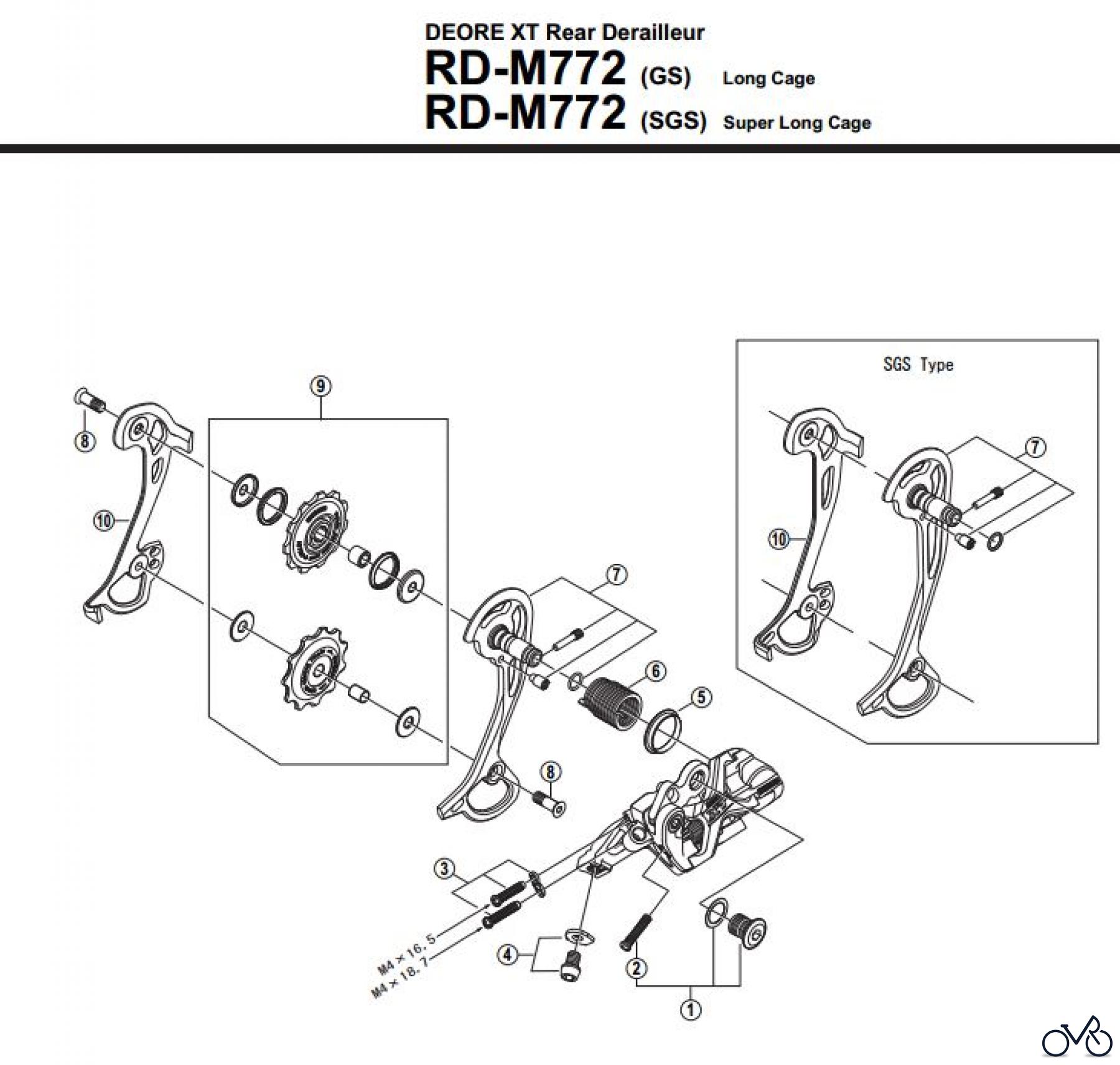

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-M772-2707A. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-5W798010B-Axle Assembly Y5W798010
2 Y-55625040B-Tension Adjusting Screw (M4 x 18) Y55625040
3 Shimano Stroke Adjusting Screws & PlateY-5W798020Stroke Adjusting Screws & Plate Y5W798020
4 Y-5W798030Cable Fixing Bolt (M5 x 8) & Plate Y5W798030
5 Shimano P-Seal RingY-5UC14000P-Seal Ring Y5UC14000
6 Shimano P-Tension SpringY-5W722000P-Tension Spring Y5W722000
7 Y-5W798040Outer Plate Assembly (GS-Type) Y5W798040
7 Y-5W798050Outer Plate Assembly (SGS-Type) Y5W798050
8 Shimano Pulley BoltY-53M24400Pulley Bolt Y53M24400
9 Y-5W798080Guide & Tension Pulley Unit Y5W798080
10 Y-5W709000Inner Plate (GS-Type) Y5W709000
10 Shimano Inner Plate (SGS-Type)Y-5W710000Inner Plate (SGS-Type) Y5W710000
