Shimano RD-M771

RD-M771 RD Rear Derailleur - Schaltwerk

Shimano RD Rear Derailleur - Schaltwerk RD-M771

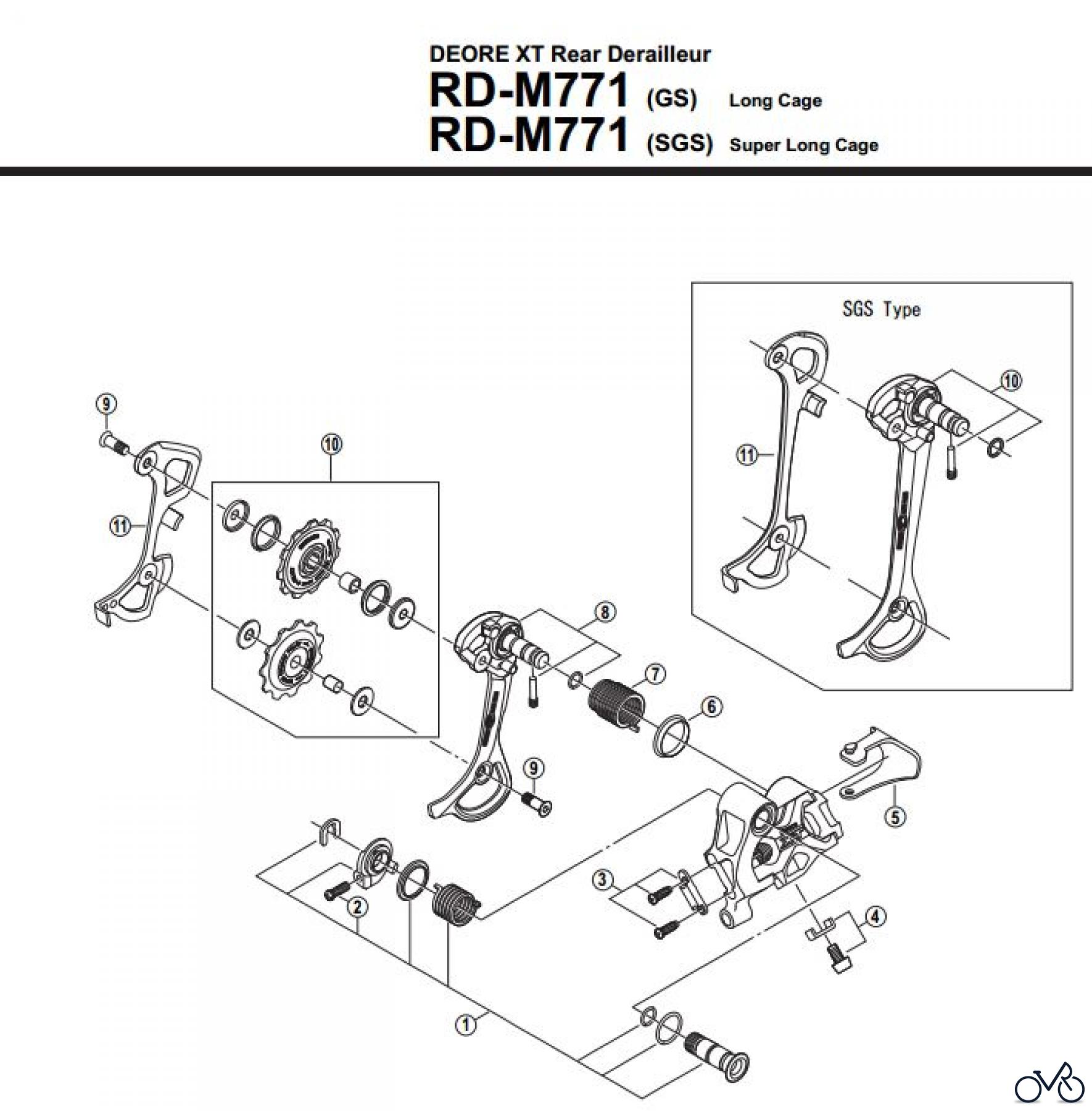

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-M771. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano B-Axle AssemblyY-5W598010B-Axle Assembly Y5W598010
2 Y-55625020B-Tension Adjusting Screw (M4 x 10) Y55625020
3 Y-5W598020Stroke Adjusting Screws (M4 x 11.5) & Plate Y5W598020
4 Shimano Cable Fixing Bolt (M5 x 8) & PlateY-5W598030Cable Fixing Bolt (M5 x 8) & Plate Y5W598030
5 Shimano CoverY-5VA16000Cover Y5VA16000
6 Shimano P-Seal Ring Y-5UC14000P-Seal Ring Y5UC14000
7 Y-5UF14000P-Tension Spring Y5UF14000
8 Y-5W598040Outer Plate Assembly (GS-Type) Y5W598040
8 Y-5W598050Outer Plate Assembly (SGS-Type) Y5W598050
9 Shimano Pulley Bolt Y-53M24000Pulley Bolt Y53M24000
10 Y-5W598080Guide & Tension Pulley Unit Y5W598080
11 Shimano Inner Plate (GS-Type)Y-5U509300Inner Plate (GS-Type) Y5U509300
11 Shimano Inner Plate (SGS-Type) Y-5W510000Inner Plate (SGS-Type) Y5W510000
