Shimano RD-M6250 -5114A DEORE Rear Derailleur 12 speed

RD-M6250 -5114A DEORE Rear Derailleur 12 speed RD Rear Derailleur - Schaltwerk

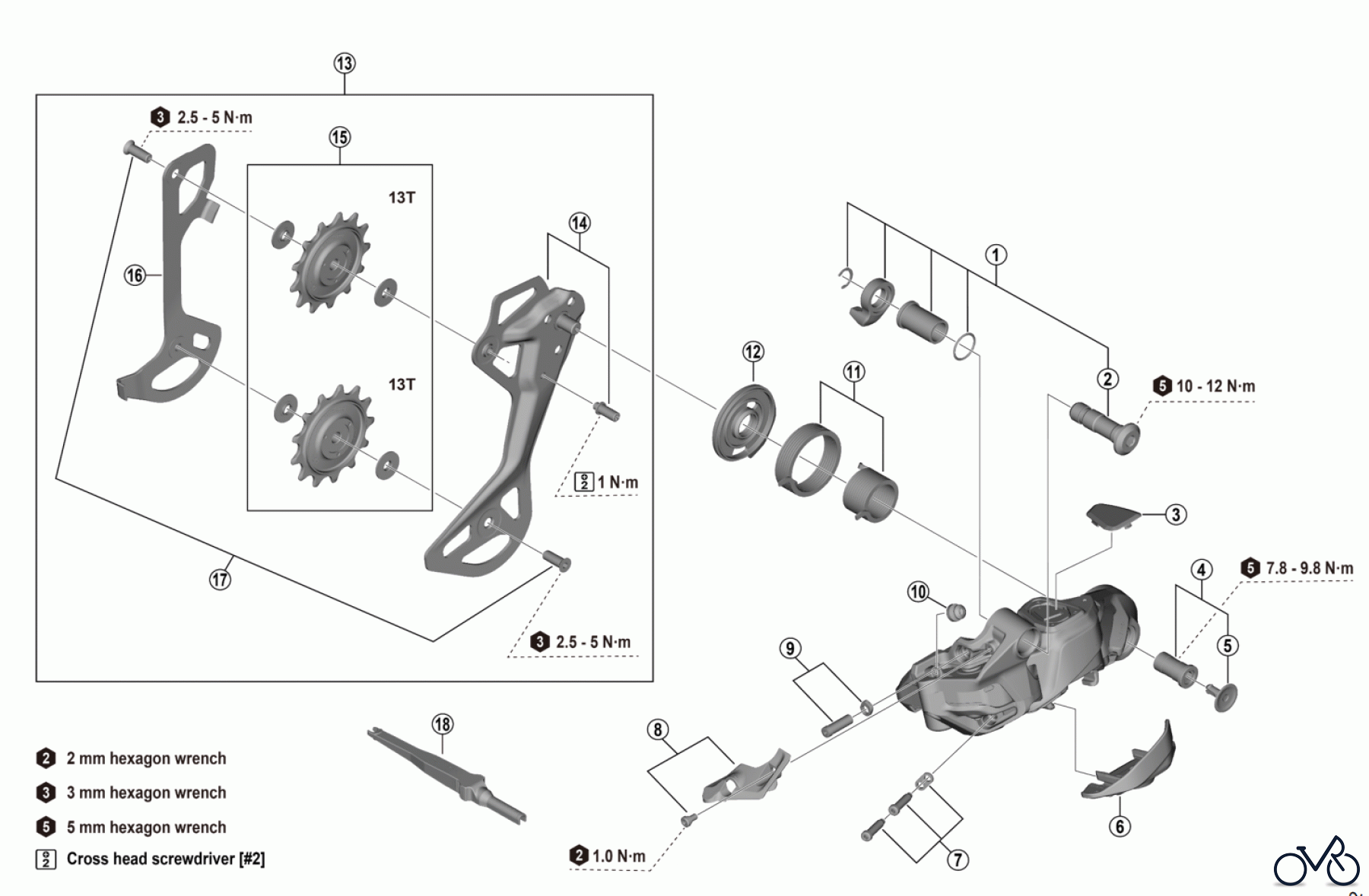

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-M6250 -5114A DEORE Rear Derailleur 12 speed. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3KA98060	B-axle unit Y3KA98060
2	Y-3KA9801T	B-axle Y3KA9801T
3	Y-3K79802T	Outer link cap Y3K79802T
4	Y-3KA98070	Plate axle and cap Y3KA98070
5	Y-3K79803T	Plate axle cap Y3K79803T
6	Y-3KA98080	Battery holder Y3KA98080
7	Y-3HY98030	Stroke adjusting screws and plate Y3HY98030
8	Y-3K798050	Cable cover and fixing screw Y3K798050
9	Y-3K798060	End adjust screw and plate Y3K798060
10	Y-3KR9801T	Plug cover Y3KR9801T
11	Y-3K798070	Plate tension spring unit Y3K798070
12	Y-3K79805T	Plate bumper Y3K79805T
13	Y-3KS98020	Plate unit (SGS) Y3KS98020
14	Y-3KS98030	Outer plate assembly (SGS) Y3KS98030
15	Y-3KA98030	Pulley set Y3KA98030
16	Y-3KS98010	Inner plate (SGS) Y3KS98010
17	Y-3FW98090	Pulley screw (2 pcs.) Y3FW98090
18	Y-7HE40000	TL-EW300 Plug tool Y7HE40000
