Shimano WH-M788-F15 For Disc Brake DEORE XT Front Wheel

WH-M788-F15 For Disc Brake DEORE XT Front Wheel WH Wheels - Laufräder

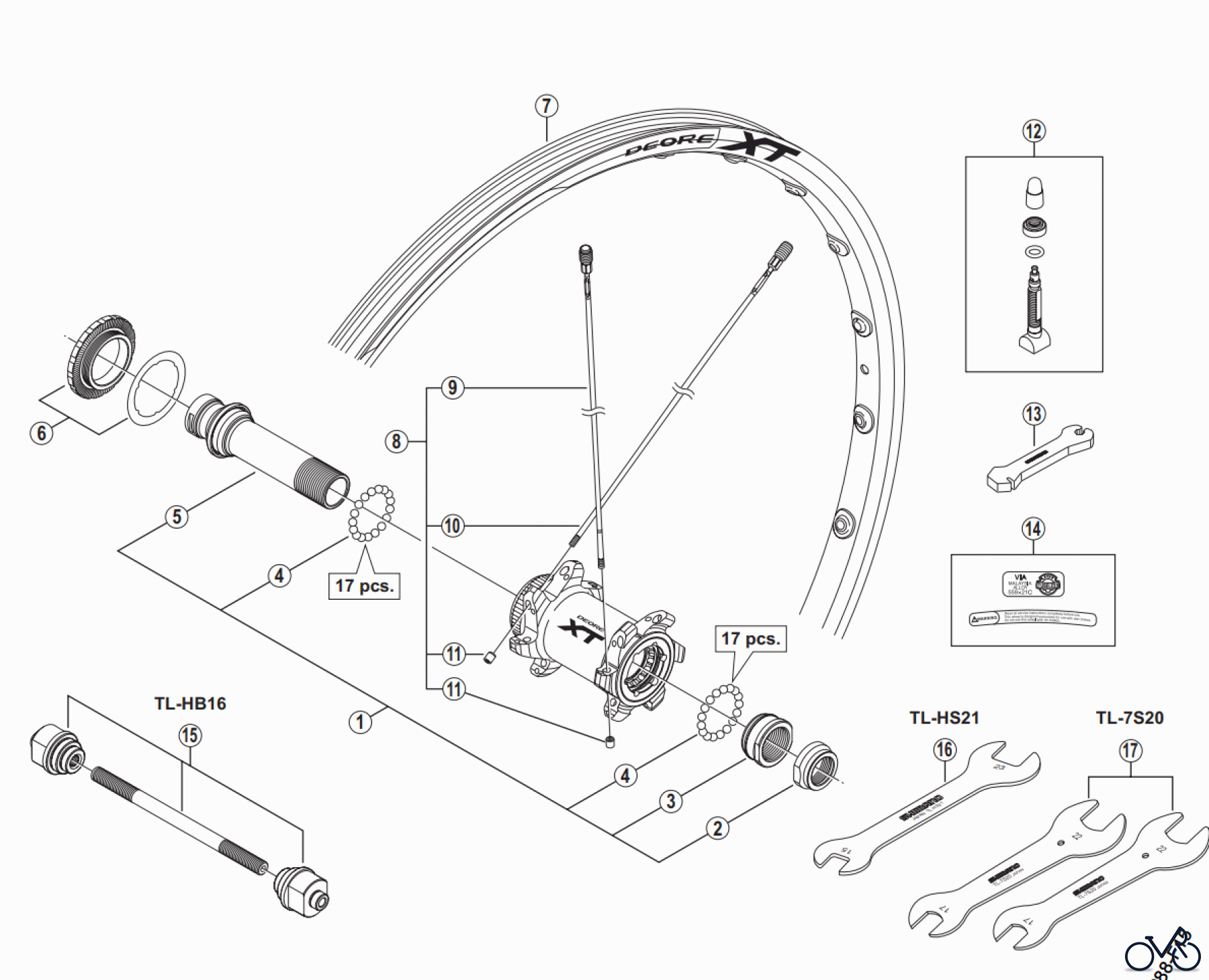

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-M788-F15 For Disc Brake DEORE XT Front Wheel . Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2UC98010	Complete Hub Axle Y2UC98010
2	Y-2UC09000	Lock Nut (M19) Y2UC09000
3	Y-2UC08000	Right Hand Cone (M19) Y2UC08000
4	Y-4BR98130	Steel Ball (5/32") 34 pcs. Y4BR98130
5	Y-2UC98020	Hub Axle 96 mm Y2UC98020
6	Y-26L98030	Lock Ring & Washer Y26L98030
7	E-WHRIM2VDBC	Rim {24H} EWHRIM2VDBC
8	E-WHSPOKE2VA1	Spoke Unit {Spoke (269 mm x 12 pcs. & 271 mm x 12 pcs.) / Spoke Plug (24 pcs.) / EWHSPOKE2VA1
9	Y-4S698010	Right Hand Spoke (271 mm) w/Plug & Washer Y4S698010
10	Y-4S698020	Left Hand Spoke (269 mm) w/Plug & Washer Y4S698020
11	Y-4G308100	Hub Nut Y4G308100
12	Y-4G398030	Valve Unit Y4G398030
13	Y-4DA09000	Spoke Plug Wrench Y4DA09000
14	Y-4S698030	Rim Sticker Unit Y4S698030
15	Y-20W98020	TL-HB16 Hub Setting Tool Y20W98020
16	Y-3C228000	TL-HS21 Hub Spanner (15 mm x 23 mm) Y3C228000
17	Y-13098900	TL-7S20 Hub Spanner (17 mm x 22 mm) 2 pcs Y13098900
