Shimano CS-LG700-11 CS-LG400-11 CS-LG400-10 CS-LG400-9 CS-LG300-10 CS-LG300-9

CS-LG700-11 CS-LG400-11 CS-LG400-10 CS-LG400-9 CS-LG300-10 CS-LG300-9 CS Cassette / Zahnkranz

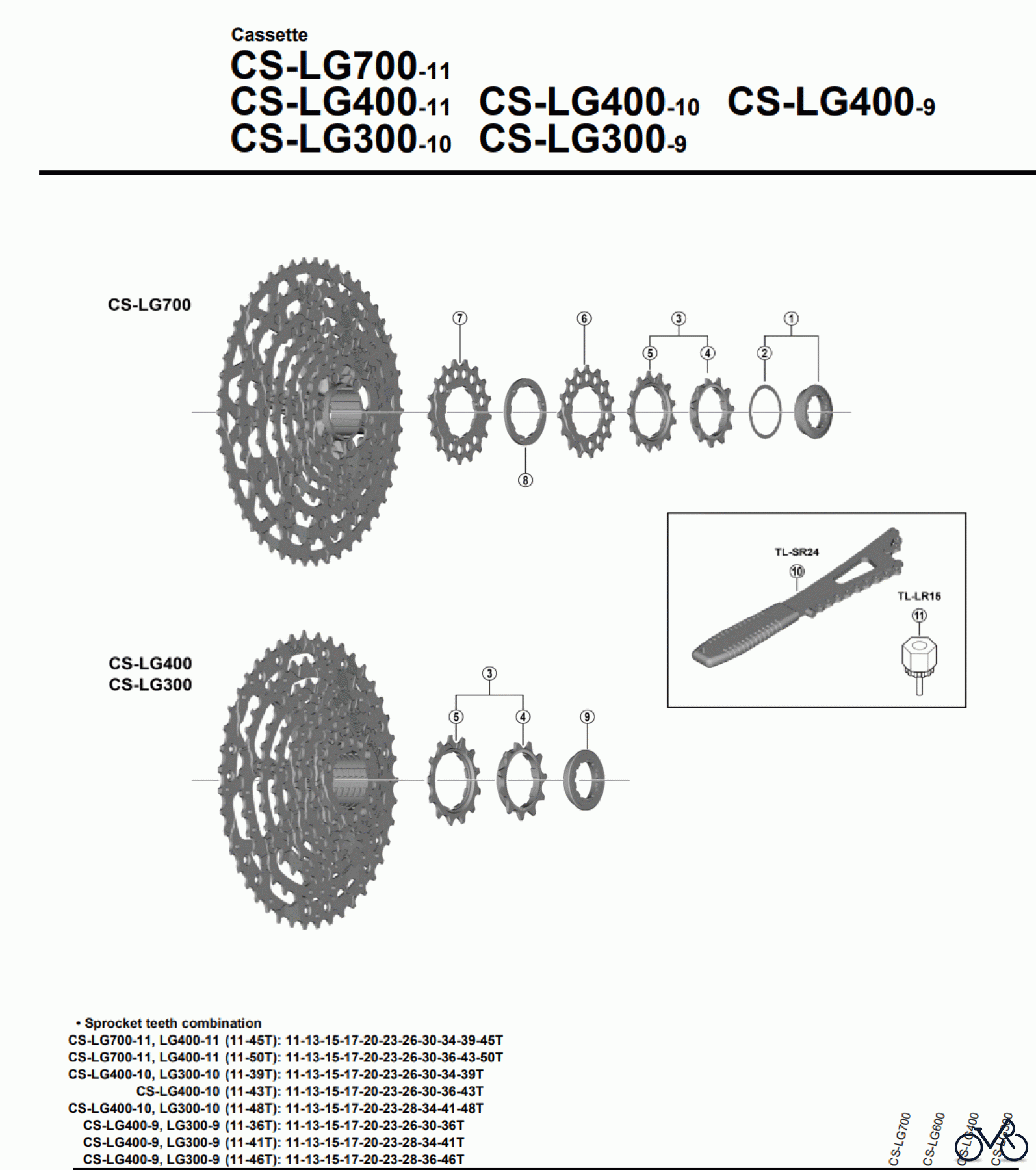

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-LG700-11 CS-LG400-11 CS-LG400-10 CS-LG400-9 CS-LG300-10 CS-LG300-9. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0RF98010	Lock ring and washer Y0RF98010
2	Y-10Z04000	Lock ring washer Y10Z04000
3	Y-0RF98020	Sprocket 11T and 13T for CS-LG700 Y0RF98020
3	Y-0RG98020	Sprocket 11T and 13T (used for CS-LG400) Y0RG98020
4	Y-0RF9801T	Sprocket 11T (built in spacer type) for CS-LG700 Y0RF9801T
4	Y-0RG9801T	Sprocket 11T (built in spacer type) used for CS-LG400 Y0RG9801T
5	Y-0RF9802T	Sprocket 13T (built in spacer type) for CS-LG700 Y0RF9802T
5	Y-0RG9802T	Sprocket 13T (built in spacer type) used for CS-LG400 Y0RG9802T
6	Y-0RF9803T	Sprocket 15T Y0RF9803T
7	Y-0RF9804T	Sprocket 17T Y0RF9804T
8	Y-0NC04000	Spacer Y0NC04000
9	Y-0RG98010	Lock ring (used for CS-LG400) Y0RG98010
10	Y-13098730	TL-SR24 Sprocket remover tool Y13098730
11	Y-12009230	TL-LR15 Lock ring removal tool Y12009230
