Shimano GRX Crankset FC-RX810-11-1　　　FC-RX810-11-1-LE FC-RX810-11-2　　　FC-RX810-11-2-LE

GRX Crankset FC-RX810-11-1　　　FC-RX810-11-1-LE FC-RX810-11-2　　　FC-RX810-11-2-LE FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt GRX Crankset FC-RX810-11-1　　　FC-RX810-11-1-LE FC-RX810-11-2　　　FC-RX810-11-2-LE

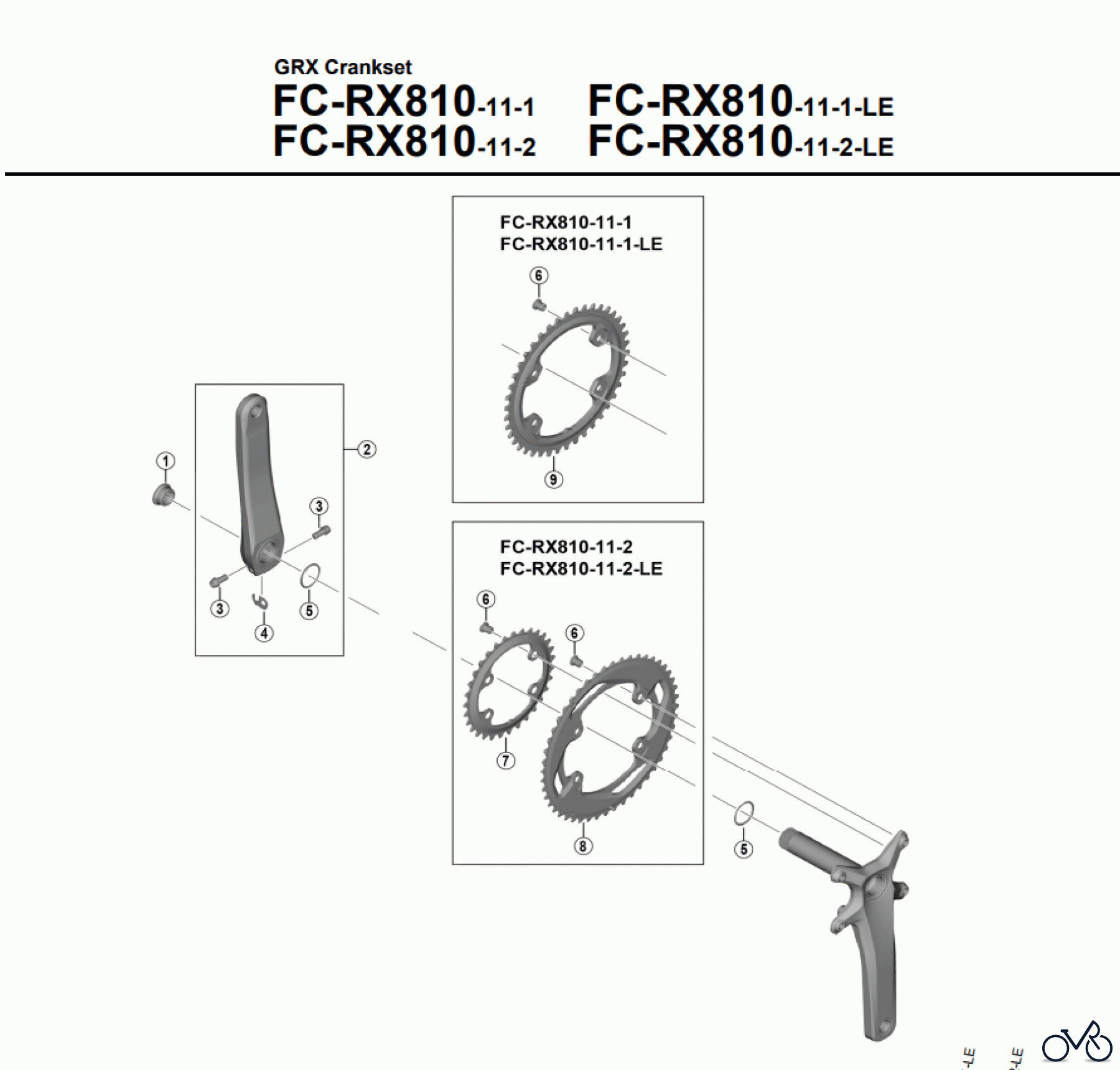

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt GRX Crankset FC-RX810-11-1　　　FC-RX810-11-1-LE FC-RX810-11-2　　　FC-RX810-11-2-LE. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Crank arm fixing screw A A Y-0J620000 Crank arm fixing screw A A Y0J620000
3 Shimano Clamp screw with washer (M6 x 19) A A Y-1GS22000 Clamp screw with washer (M6 x 19) A A Y1GS22000
4 Shimano Plate A A Y-1GE98050 Plate A A Y1GE98050
5 Shimano Ring A A Y-1F316000 Ring A A Y1F316000
6 Y-0JR98050 Chainring fixing screw (M8 x 9 / 1 unit = 4 pcs.) A A Y0JR98050
7 Y-0JR31000 Chainring 31T-ND A Y0JR31000
8 Y-0JR98010 Chainring 48T-ND B Y0JR98010
9 Y-0JP98010 Chainring 40T B Y0JP98010
9 Y-0JP98020 Chainring 42T Y0JP98020
2 Y-0JR98020 Left hand crank arm unit 170 mm B B Y0JR98020
2 Y-0JR98030 Left hand crank arm unit 172.5 mm B B Y0JR98030
2 Y-0JR98040 Left hand crank arm unit 175 mm Y0JR98040
