Shimano FD-RX400 GRX Front Derailleur (2x10-speed)

FD-RX400 GRX Front Derailleur (2x10-speed) FD Front Derailleur - Umwerfer

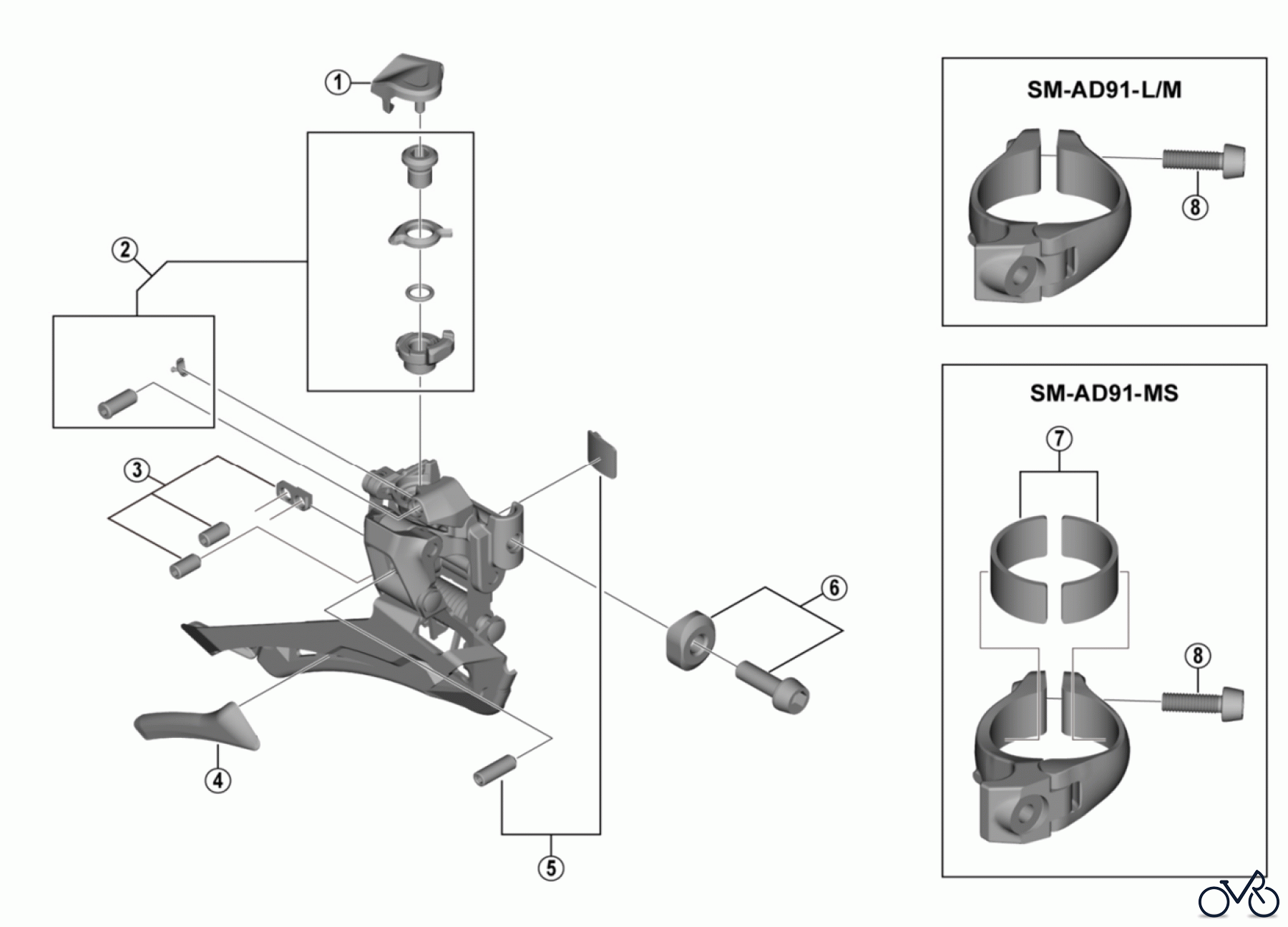

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-RX400 GRX Front Derailleur (2x10-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5ZS22000	Link Cover Y5ZS22000
2	Y-2C098010	Cable Fixing Screw Unit & Cable Adjust Screw Unit Y2C098010
3	Y-2ES98010	Adjust Screws & Plate Y2ES98010
4	Y-2BA12000	Inner Skid Plate Y2BA12000
5	Y-2C098030	Support Screw & Plate Y2C098030
6	Y-5P898010	Clamp Screw (M5 x 15) & Radius Washer Y5P898010
7	Y-5P198030	Clamp Band Adapter Unit for S-size / Diameter 28.6 mm Y5P198030
8	Y-5ZS39000	Clamp Screw (M5 x 17) Y5ZS39000
