Shimano FD-M660-10 (-3055A) SLX Front Derailleur (10-Speed)

FD-M660-10 (-3055A) SLX Front Derailleur (10-Speed) FD Front Derailleur - Umwerfer

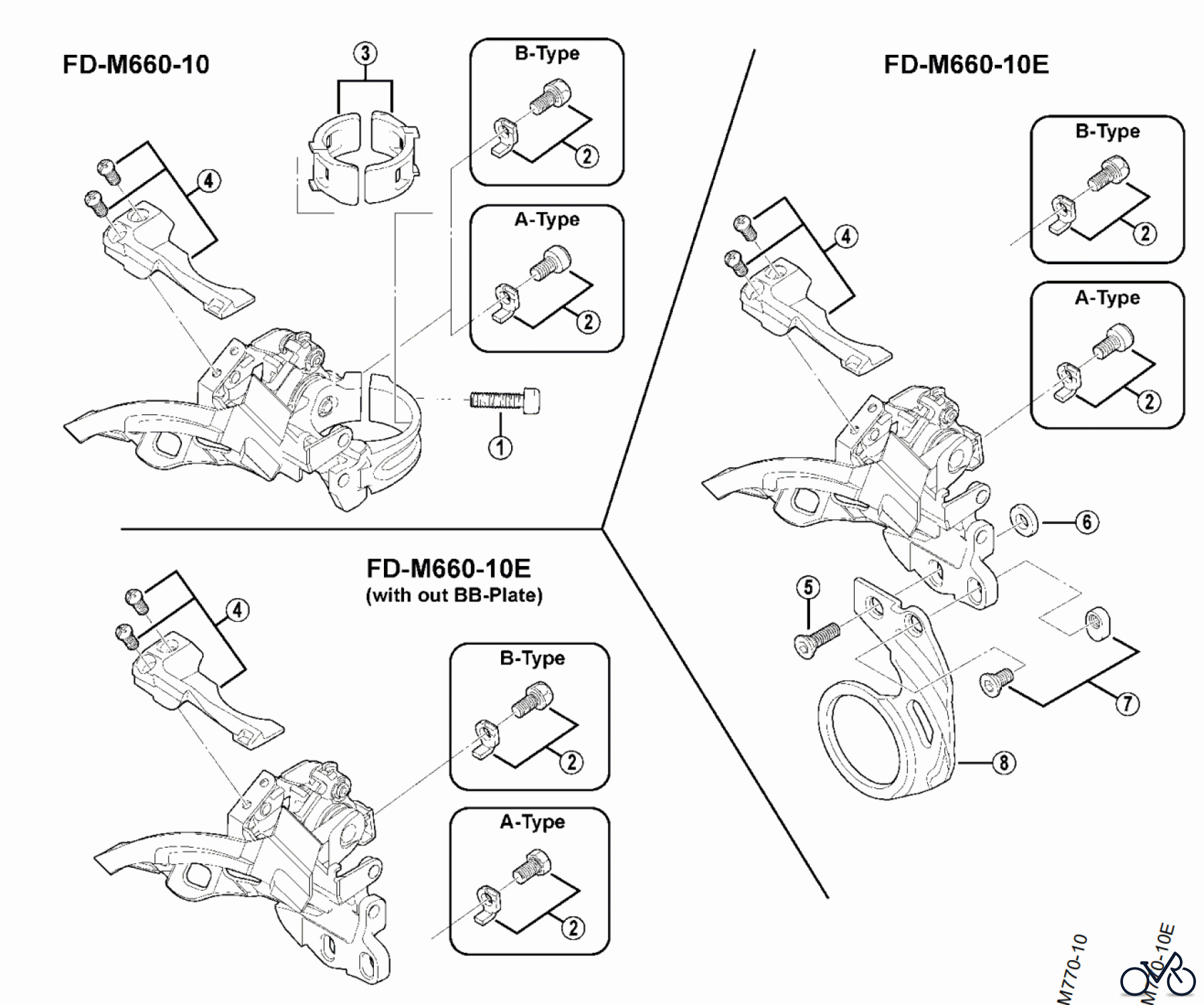

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M660-10 (-3055A) SLX Front Derailleur (10-Speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5BG07900	Clamp Bolt (M5 x 17.5) Y5BG07900
2	Y-5MC98010	Cable Fixing Plate & Bolt (M5 x 9) B-Type Y5MC98010
2	Y-5KV98010	Cable Fixing Plate & Bolt (M5 x 8.5) A-Type Y5KV98010
2	Y-5KV98020	Cable Fixing Plate & Hexagon Head Bolt (9mm) for FD-M660-10E (without BB-Plate) A-Type Y5KV98020
3	Y-57Y98030	SM-AD17S Clamp Band Adapters for S-size / ?28.6 mm (1-1/8") Y57Y98030
3	Y-57Y98040	SM-AD17M Clamp Band Adapters for M-size / ?31.8 mm (1-1/4") Y57Y98040
4	Y-5MG98010	Stroke Adjust Screws (M4 x 8.5) & Plate for FD-M660-10 Y5MG98010
4	Y-5MD98010	Stroke Adjust Screws (M4 x 8.5) & Plate for FD-M660-10E Y5MD98010
5	Y-5CR52200	Bracket Fixing Bolt Y5CR52200
6	Y-5HF10000	Spacer(2.5mm) for Shell Width 68mm Y5HF10000
7	Y-5CR98020	Bracket Fixing Bolt A & Nut Y5CR98020
8	Y-5EC50500	BB-Plate Y5EC50500
