Shimano FD-4703 TIAGRA Front Derailleur (3x10-speed)

FD-4703 TIAGRA Front Derailleur (3x10-speed) FD Front Derailleur - Umwerfer

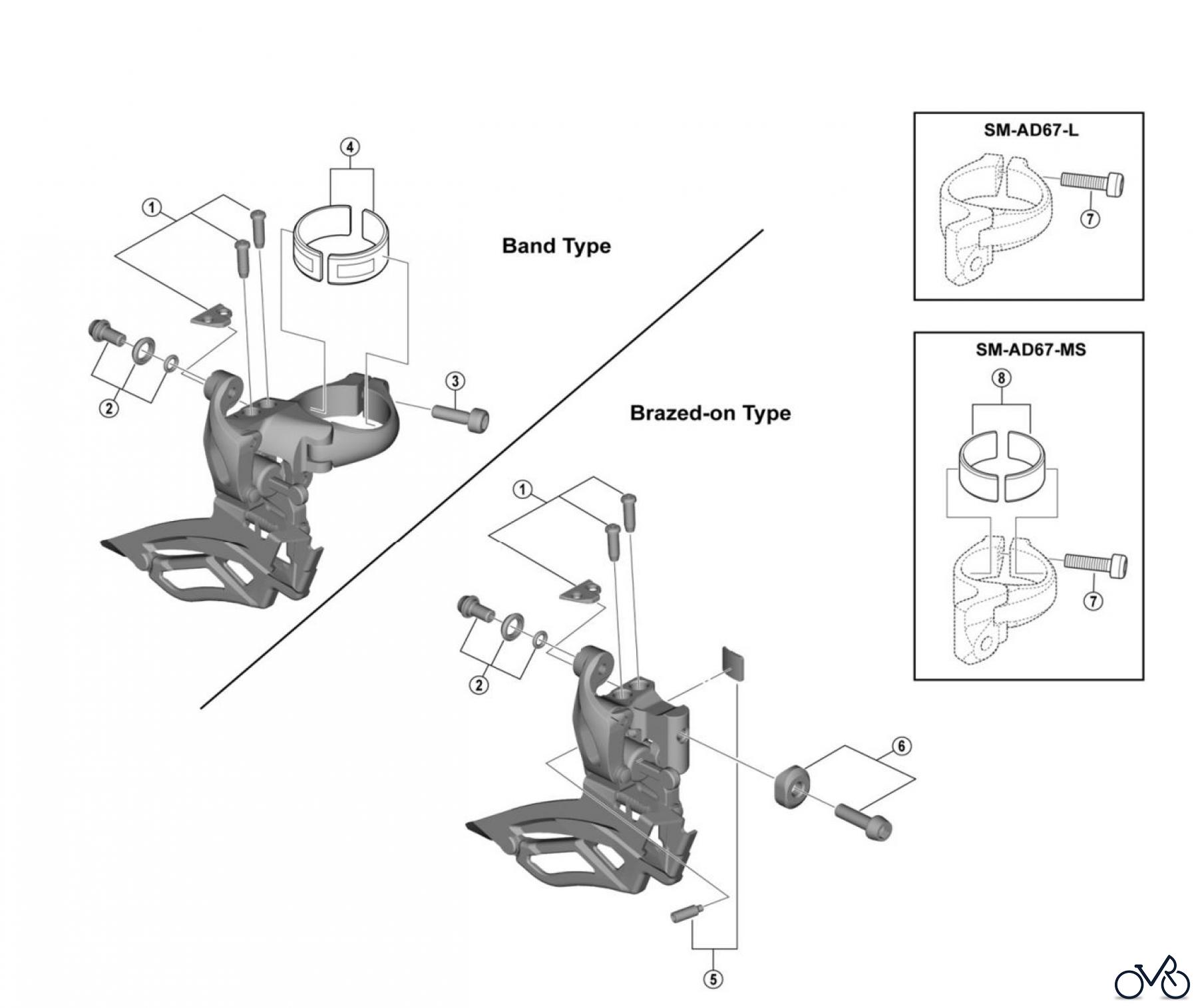

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-4703 TIAGRA Front Derailleur (3x10-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5P198010	Stroke Adjust Screws (M4 x 15) & Plate for Band Type A Y5P198010
1	Y-5MR98010	Stroke Adjust Screws (M4 x 13) & Plate for Brazed-on Type A Y5MR98010
2	Y-5RH98010	Cable Fixing Bolt Unit Y5RH98010
3	Y-5BG07900	Clamp Bolt (M5 x 17.5) A Y5BG07900
4	Y-5P198030	Clamp Band Adapter Unit for S-size / Diameter 28.6 mm (1-1/8") A Y5P198030
5	Y-2BA98020	Support Bolt & Plate A Y2BA98020
6	Y-5P898010	Clamp Bolt (M5 x 15) & Radius Washer A Y5P898010
7	Y-59L19100	Clamp Bolt (M5 x 17.5) for SM-AD67 A Y59L19100
8	Y-5JD98020	Adapter (2 pcs.) for SM-AD67-MS / Diameter 28.6 mm (1-1/8”) Y5JD98020
