Sram VIVID AIR (2011-2013)

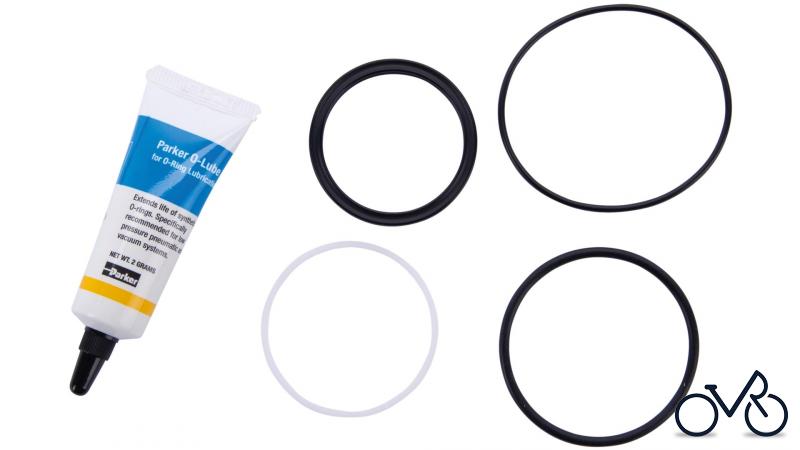

AM Rear Shock Service Kit, Basic (includes air can seals only) - Vivid Air (2012-2013)

Sram AM Rear Shock Service Kit, Basic (includes air can seals only) - Vivid Air (2012-2013)
Article Number:
00.4315.032.220
Pos:
25
22.05 €
for EU incl. VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.
Sram RockShox VIVID AIR (2011-2013)

Here you will find the spare parts drawing for Sram RockShox VIVID AIR (2011-2013). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
1a 11.4115.088.040Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 200x57 Low 11.4115.088.040
1a 11.4115.088.050Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 200x57 Mid 11.4115.088.050
1a 11.4115.088.060Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 200x57 High 11.4115.088.060
1a 11.4115.088.070Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 216x63 Low 11.4115.088.070
1a 11.4115.088.080Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 216x63 Mid 11.4115.088.080
1a 11.4115.088.090Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 216x63 High 11.4115.088.090
1a 11.4115.088.100Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 222x70 Low 11.4115.088.100
1a 11.4115.088.110Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 222x70 Mid 11.4115.088.110
1a 11.4115.088.120Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 222x70 High 11.4115.088.120
1a 11.4115.088.130Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 229x70 Low 11.4115.088.130
1a 11.4115.088.140Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 229x70 Mid 11.4115.088.140
1a 11.4115.088.150Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 229x70 High 11.4115.088.150
1a 11.4115.088.160Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 240x76 Low 11.4115.088.160
1a 11.4115.088.170Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 240x76 Mid 11.4115.088.170
1a 11.4115.088.180Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2C, 90 degree rebound, 240x76 High 11.4115.088.180
1b 11.4115.088.220Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 200x57 Low 11.4115.088.220
1b 11.4115.088.230Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 200x57 Mid 11.4115.088.230
1b 11.4115.088.240Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 200x57 High 11.4115.088.240
1b 11.4115.088.250Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 216x63 Low 11.4115.088.250
1b 11.4115.088.260Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 216x63 Mid 11.4115.088.260
1b 11.4115.088.270Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 216x63 High 11.4115.088.270
1b 11.4115.088.280Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 222x70 Low 11.4115.088.280
1b 11.4115.088.290Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 222x70 Mid 11.4115.088.290
1b 11.4115.088.300Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 222x70 High 11.4115.088.300
1b 11.4115.088.310Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 229x70 Low 11.4115.088.310
1b 11.4115.088.320Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 229x70 Mid 11.4115.088.320
1b 11.4115.088.330Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 229x70 High 11.4115.088.330
1b 11.4115.088.340Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 240x76 Low 11.4115.088.340
1b 11.4115.088.350Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 240x76 Mid 11.4115.088.350
1b 11.4115.088.360Eyelet/Shaft/Sealhead Assy, 2011 Vivid Air R2, 90 degree rebound, 240x76 High 11.4115.088.360
2 11.4115.089.010Shaft Eyelet/Rebound Adjust Knob Assembly (Standard) 2011 Vivid Air 11.4115.089.010
2 11.4115.089.020Shaft Eyelet/Rebound Adjust Knob Assembly (203x57) 2011 Vivid Air 11.4115.089.020
2 11.4115.089.030Shaft Eyelet/Rebound Adjust Knob Assembly (229x70) 2011 Vivid Air 11.4115.089.030
4 11.4115.079.090Damper Body/Reservoir Assy, 200x57/203x57 (assembled) 2011 Vivid Air R2C 11.4115.079.090
4 11.4115.079.100Damper Body/Reservoir Assy, 222x70/229x70 (assembled) 2011 Vivid Air R2C 11.4115.079.100
4 11.4115.079.110Damper Body/Reservoir Assy, 240x76 (assembled) 2011 Vivid Air R2C 11.4115.079.110
4 11.4115.079.130Damper Body/Reservoir Assy, 216x63 (assembled) 2011 Vivid Air R2C 11.4115.079.130
4 11.4115.079.140Damper Body/Reservoir Assy, 200x57/203x57 (assembled) 2011 Vivid Air R2 11.4115.079.140
4 11.4115.079.150Damper Body/Reservoir Assy, 222x70/229x70 (assembled) 2011 Vivid Air R2 11.4115.079.150
4 11.4115.079.160Damper Body/Reservoir Assy, 240x76 (assembled) 2011 Vivid Air R2 11.4115.079.160
4 11.4115.079.180Damper Body/Reservoir Assy, 216x63 (assembled) 2011 Vivid Air R2 11.4115.079.180
5 11.4115.080.070Main Piston Assy, Low, 2011 Vivid Coil R2C (267x89), 2011 Vivid Air R2C 11.4115.080.070
5 11.4115.080.080Main Piston Assy, Mid, 2011 Vivid Air R2C 11.4115.080.080
5 11.4115.080.090Main Piston Assy, High, 2011 Vivid Air R2C 11.4115.080.090
5 11.4115.080.100Main Piston Assy, Low, 2011 Vivid Air R2 11.4115.080.100
5 11.4115.080.110Main Piston Assy, Mid, 2011 Vivid Air R2 11.4115.080.110
5 11.4115.080.120Main Piston Assy, High, 2011 Vivid Air R2 11.4115.080.120
6 11.4115.081.070Piston Shim Stack, Low, 2011 Vivid R2C (267x89), 2011 Vivid Air R2C 11.4115.081.070
6 Sram Piston Shim Stack, Mid, 2011 Vivid Air R2C 11.4115.081.080Piston Shim Stack, Mid, 2011 Vivid Air R2C 11.4115.081.080
6 11.4115.081.090Piston Shim Stack, High, 2011 Vivid Air R2C 11.4115.081.090
6 11.4115.081.100Piston Shim Stack, Low, 2011 Vivid Air R2 11.4115.081.100
6 11.4115.081.110Piston Shim Stack, Mid, 2011 Vivid Air R2 11.4115.081.110
6 11.4115.081.120Piston Shim Stack, High, 2011 Vivid Air R2 11.4115.081.120
7 11.4115.091.010Inner Tube/Rings, Shock Body (200mm/203mm) - 2009-2011 Vivid/Vivid Air 11.4115.091.010
7 11.4115.091.020Inner Tube/Rings, Shock Body (216mm/222mm/229mm) - 2009-2011 Vivid/Vivid Air 11.4115.091.020
7 11.4115.091.030Inner Tube/Rings, Shock Body (240mm) - 2009-2011 Vivid/Vivid Air 11.4115.091.030
8 Sram Reservoir Can, Qty 1 (200/203/216/222/229/240) 2011 Vivid/Vivid Air 11.4115.021.020Reservoir Can, Qty 1 (200/203/216/222/229/240) 2011 Vivid/Vivid Air 11.4115.021.020
9 Sram Reservoir Sealhead Assy (assembled) - 2009-2011 Vivid/Vivid Air 11.4115.022.000Reservoir Sealhead Assy (assembled) - 2009-2011 Vivid/Vivid Air 11.4115.022.000
10 Sram Reservoir Internal Floating Piston Assy, 2009-2011 Vivid/Vivid Air 11.4115.082.010Reservoir Internal Floating Piston Assy, 2009-2011 Vivid/Vivid Air 11.4115.082.010
11 Sram Compression Conversion Cover (no compression adjust) - 2009-2011 Vivid/Vivid Air 4.1/R2 11.4115.024.000Compression Conversion Cover (no compression adjust) - 2009-2011 Vivid/Vivid Air 4.1/R2 11.4115.024.000
12 Sram Compression Adjust Piston Assy (assembled) - 2009-2011 Vivid/Vivid Air 5.1 /R2C 11.4115.025.000Compression Adjust Piston Assy (assembled) - 2009-2011 Vivid/Vivid Air 5.1 /R2C 11.4115.025.000
13 Sram Compression Adjuster Knob Assy - 2009-2011 Vivid/Vivid Air 5.1 /R2C 11.4115.026.000Compression Adjuster Knob Assy - 2009-2011 Vivid/Vivid Air 5.1 /R2C 11.4115.026.000
13 11.4118.014.000Compression Adjuster Knob/Valve Assy - 2013 Vivid Air R2CS 11.4118.014.000
14 11.4115.090.010End Stroke Rebound Adjuster Assy - 2011 Vivid/Vivid Air (not compatible with 2009-2010) 11.4115.090.010
15a 11.4115.099.010Air Can Assembly Standard, 200x51/200x57 - 2011 Vivid Air 11.4115.099.010
15a 11.4115.099.020Air Can Assembly Standard, 216x60/216x63 - 2011 Vivid Air 11.4115.099.020
15a 11.4115.099.030Air Can Assembly Standard, 222x70/229x70 - 2011 Vivid Air 11.4115.099.030
15a 11.4115.099.040Air Can Assembly Standard, 240x76 - 2011 Vivid Air 11.4115.099.040
15b 11.4115.099.050Air Can Assembly Optional, 200x51/200x57 - 2011 Vivid Air 11.4115.099.050
15b 11.4115.099.060Air Can Assembly Optional, 216x60/216x63 - 2011 Vivid Air 11.4115.099.060
15b 11.4115.099.070Air Can Assembly Optional, 222x70/229x70 - 2011 Vivid Air 11.4115.099.070
15b 11.4115.099.080Air Can Assembly Optional, 240x76 - 2011 Vivid Air 11.4115.099.080
16 11.4115.101.010Schrader Vavle Assembly (Air Can) - 2011 Vivid Air 11.4115.101.010
17 11.4115.102.010Sleeve Kit, Air Can, 200x51/200x57 - 2011 Vivid Air 11.4115.102.010
17 11.4115.102.020Sleeve Kit, Air Can, 216x60/216x63 - 2011 Vivid Air 11.4115.102.020
17 11.4115.102.030Sleeve Kit, Air Can, 222x70/229x70 - 2011 Vivid Air 11.4115.102.030
17 11.4115.102.040Sleeve Kit, Air Can, 240x76 - 2011 Vivid Air 11.4115.102.040
18 11.4115.103.010Collar Kit, Air Can - 2011 Vivid Air 11.4115.103.010
19 11.4115.083.010Hot Rod Adjuster Needle & O-Ring (200x51, 200x57, 203x57) - 2011 Vivid/Vivid Air 11.4115.083.010
19 11.4115.083.020Hot Rod Adjuster Needle & O-Ring (216x60, 216x63) - 2011 Vivid/Vivid Air 11.4115.083.020
19 11.4115.083.030Hot Rod Adjuster Needle & O-Ring (222x70, 229x70) - 2011 Vivid/Vivid Air 11.4115.083.030
19 11.4115.083.040Hot Rod Adjuster Needle & O-Ring (240x76) - 2011 Vivid/Vivid Air 11.4115.083.040
21 11.4115.085.010Rebound Adjuster Knob - 2011 Vivid/Vivid Air (not compatible 2009-2010) 11.4115.085.010
22 Sram Service Kit Full - 2011 Vivid Air 11.4115.092.010Service Kit Full - 2011 Vivid Air 11.4115.092.010
23 Sram Service Kit Basic - 2011 Vivid Air 11.4115.100.010Service Kit Basic - 2011 Vivid Air 11.4115.100.010
24 Sram Service Kit, Air Can - 2011 Vivid Air 11.4115.093.010Service Kit, Air Can - 2011 Vivid Air 11.4115.093.010
25 Sram AM Rear Shock Service Kit, Basic (includes air can seals only) - Vivid Air (2012-2013) 00.4315.032.220AM Rear Shock Service Kit, Basic (includes air can seals only) - Vivid Air (2012-2013) 00.4315.032.220
26 Sram Rear Shock Eyelet Bushing 1/2”X1/2” Qty 2 11.4115.013.000Rear Shock Eyelet Bushing 1/2”X1/2” Qty 2 11.4115.013.000
27 Sram Spanner Wrench/Air Valve/Torx Tool - RockShox Vivid/Vivid Air 00.4315.028.010Spanner Wrench/Air Valve/Torx Tool - RockShox Vivid/Vivid Air 00.4315.028.010
28 Sram Wrench, Air Can - RockShox Vivid Air 00.4315.029.010Wrench, Air Can - RockShox Vivid Air 00.4315.029.010
29 Sram 1/2”x1/2” Rear Shock Bushing Tool (Eyelet/SealHead) RockShox 00.4315.026.0101/2”x1/2” Rear Shock Bushing Tool (Eyelet/SealHead) RockShox 00.4315.026.010
30 Sram Rear Shock Vise blocks, RockShox Monarch/Vivid/Vivid Air 00.4115.154.010Rear Shock Vise blocks, RockShox Monarch/Vivid/Vivid Air 00.4115.154.010
ns Sram High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010
ns Sram High-Pressure Fork/Shock Pump (600 psi Max) RockShox 00.4315.023.030High-Pressure Fork/Shock Pump (600 psi Max) RockShox 00.4315.023.030
ns Sram Schrader Valve Removal Tool Rockshox 00.4315.022.010Schrader Valve Removal Tool Rockshox 00.4315.022.010
ns Sram Lubricant, Rear Shock Air Can, Maxima 15W 50, 1 Liter Bottle 11.4115.094.010Lubricant, Rear Shock Air Can, Maxima 15W 50, 1 Liter Bottle 11.4115.094.010
ns Sram Lubricant, Rear Shock Seals, Parker O-Lube, 2g tube 11.4115.094.020Lubricant, Rear Shock Seals, Parker O-Lube, 2g tube 11.4115.094.020
ns Sram RockShox Rear Suspension Damping Fluid 3wt 16oz bottle 11.4315.004.020RockShox Rear Suspension Damping Fluid 3wt 16oz bottle 11.4315.004.020
ns Sram RockShox Rear Suspension Damping Fluid 3wt 120ml bottle 11.4315.021.050RockShox Rear Suspension Damping Fluid 3wt 120ml bottle 11.4315.021.050
ns 11.4318.003.210Decal Kit Vivid Air R2C 200X57 Grey/Black 11.4318.003.210
ns 11.4318.003.211Decal Kit Vivid Air R2C 200X57 White/Black 11.4318.003.211
ns 11.4318.003.212Decal Kit Vivid Air R2C 216X63 Grey/Black 11.4318.003.212
ns 11.4318.003.213Decal Kit Vivid Air R2C 216X63 White/Black 11.4318.003.213
ns 11.4318.003.214Decal Kit Vivid Air R2C 222X70 Grey/Black 11.4318.003.214
ns 11.4318.003.215Decal Kit Vivid Air R2C 222X70 White/Black 11.4318.003.215
ns 11.4318.003.216Decal Kit Vivid Air R2C 240X76 Grey/Black 11.4318.003.216
ns 11.4318.003.217Decal Kit Vivid Air R2C 240X76 White/Black 11.4318.003.217
ns 11.4318.003.218Decal Kit Vivid Air R2 200X57 Grey/Black 11.4318.003.218
ns 11.4318.003.219Decal Kit Vivid Air R2 200X57 White/Black 11.4318.003.219
ns 11.4318.003.220Decal Kit Vivid Air R2 216X63 White/Black 11.4318.003.220
ns 11.4318.003.221Decal Kit Vivid Air R2 222X70 Grey/Black 11.4318.003.221
ns 11.4318.003.222Decal Kit Vivid Air R2 222X70 White/Black 11.4318.003.222
ns 11.4318.003.223Decal Kit Vivid Air R2 229X70 Grey/Black 11.4318.003.223
ns 11.4318.003.224Decal Kit Vivid Air R2 229X70 White/Black 11.4318.003.224
ns 11.4318.003.225Decal Kit Vivid Air R2 240X76 Grey/Black 11.4318.003.225
ns 11.4318.003.226Decal Kit Vivid Air R2 240X76 White/Black 11.4318.003.226
ns 11.4115.115.010Decal, Rear Shock, Tune (ML) - 2011 Vivid/Monarch Qty 10 11.4115.115.010
ns 11.4115.115.020Decal, Rear Shock, Tune (MM) - 2011 Vivid/Monarch Qty 10 11.4115.115.020
ns 11.4115.115.030Decal, Rear Shock, Tune (MH) - 2011 Vivid/Monarch Qty 10 11.4115.115.030
ns 11.4115.115.040Decal, Rear Shock, Tune (ML3) - 2011 Vivid/Monarch Qty 10 11.4115.115.040
ns 11.4115.115.050Decal, Rear Shock, Tune (MH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.050
ns 11.4115.115.060Decal, Rear Shock, Tune (LL3) - 2011 Vivid/Monarch Qty 10 11.4115.115.060
ns 11.4115.115.070Decal, Rear Shock, Tune (LL) - 2011 Vivid/Monarch Qty 10 11.4115.115.070
ns 11.4115.115.080Decal, Rear Shock, Tune (LM) - 2011 Vivid/Monarch Qty 10 11.4115.115.080
ns 11.4115.115.090Decal, Rear Shock, Tune (LH) - 2011 Vivid/Monarch Qty 10 11.4115.115.090
ns 11.4115.115.100Decal, Rear Shock, Tune (LH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.100
ns 11.4115.115.110Decal, Rear Shock, Tune (HL) - 2011 Vivid/Monarch Qty 10 11.4115.115.110
ns 11.4115.115.120Decal, Rear Shock, Tune (HL3) - 2011 Vivid/Monarch Qty 10 11.4115.115.120
ns 11.4115.115.130Decal, Rear Shock, Tune (HM) - 2011 Vivid/Monarch Qty 10 11.4115.115.130
ns 11.4115.115.140Decal, Rear Shock, Tune (HH) - 2011 Vivid/Monarch Qty 10 11.4115.115.140
ns 11.4115.115.150Decal, Rear Shock, Tune (HH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.150
