Sram MONARCH PLUS (2011-2013)

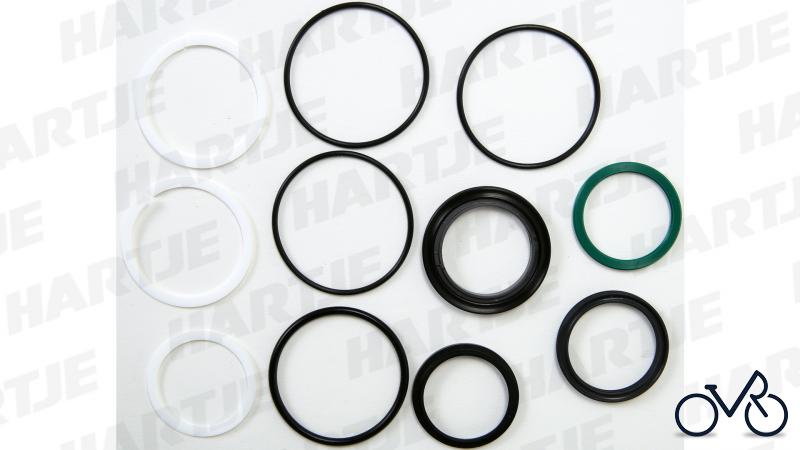

AM Rear Shock Air Can High Volume Service Kit, Basic - Monarch/Monarch Plus (2012)

Sram AM Rear Shock Air Can High Volume Service Kit, Basic - Monarch/Monarch Plus (2012)
Article Number:
00.4315.032.250
Pos:
20
26.25 €
for EU incl. VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.
Sram RockShox MONARCH PLUS (2011-2013)

Here you will find the spare parts drawing for Sram RockShox MONARCH PLUS (2011-2013). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
1 11.4115.126.010Damper Assy Black Monarch Plus RC3 190x51 Mid Rebound/Low Compression 11.4115.126.010
1 11.4115.126.020Damper Assy Black Monarch Plus RC3 190x51 Mid Rebound/Mid Compression 11.4115.126.020
1 11.4115.126.030Damper Assy Black Monarch Plus RC3 190x51 Mid Rebound/High Compression 11.4115.126.030
1 11.4115.126.040Damper Assy Black Monarch Plus RC3 200x51 Mid Rebound/Low Compression 11.4115.126.040
1 11.4115.126.050Damper Assy Black Monarch Plus RC3 200x51 Mid Rebound/Mid Compression 11.4115.126.050
1 11.4115.126.060Damper Assy Black Monarch Plus RC3 200x51 Mid Rebound/High Compression 11.4115.126.060
1 11.4115.126.070Damper Assy Black Monarch Plus RC3 200x57 Mid Rebound/Low Compression 11.4115.126.070
1 11.4115.126.080Damper Assy Black Monarch Plus RC3 200x57 Mid Rebound/Mid Compression 11.4115.126.080
1 11.4115.126.090Damper Assy Black Monarch Plus RC3 200x57 Mid Rebound/High Compression 11.4115.126.090
1 11.4115.126.100Damper Assy Black Monarch Plus RC3 216x63 Mid Rebound/Low Compression 11.4115.126.100
1 11.4115.126.110Damper Assy Black Monarch Plus RC3 216x63 Mid Rebound/Mid Compression 11.4115.126.110
1 11.4115.126.120Damper Assy Black Monarch Plus RC3 216x63 Mid Rebound/High Compression 11.4115.126.120
1 11.4115.126.130Damper Assy Black Monarch Plus RC3 216x63 Mid Rebound/High3 Compression 11.4115.126.130
1 11.4115.126.140Damper Assy Black Monarch Plus RC3 222x66 Mid Rebound/Low Compression 11.4115.126.140
1 11.4115.126.150Damper Assy Black Monarch Plus RC3 222x66 Mid Rebound/Mid Compression 11.4115.126.150
1 11.4115.126.160Damper Assy Black Monarch Plus RC3 222x66 Mid Rebound/High Compression 11.4115.126.160
1 11.4115.126.170Damper Assy White Monarch Plus RC3 190x51 Mid Rebound/Low Compression 11.4115.126.170
1 11.4115.126.180Damper Assy White Monarch Plus RC3 190x51 Mid Rebound/Mid Compression 11.4115.126.180
1 11.4115.126.190Damper Assy White Monarch Plus RC3 190x51 Mid Rebound/High Compression 11.4115.126.190
1 11.4115.126.200Damper Assy White Monarch Plus RC3 200x51 Mid Rebound/Low Compression 11.4115.126.200
1 11.4115.126.210Damper Assy White Monarch Plus RC3 200x51 Mid Rebound/Mid Compression 11.4115.126.210
1 11.4115.126.220Damper Assy White Monarch Plus RC3 200x51 Mid Rebound/High Compression 11.4115.126.220
1 11.4115.126.230Damper Assy White Monarch Plus RC3 200x57 Mid Rebound/Low Compression 11.4115.126.230
1 11.4115.126.240Damper Assy White Monarch Plus RC3 200x57 Mid Rebound/Mid Compression 11.4115.126.240
1 11.4115.126.250Damper Assy White Monarch Plus RC3 200x57 Mid Rebound/High Compression 11.4115.126.250
1 11.4115.126.260Damper Assy White Monarch Plus RC3 216x63 Mid Rebound/Low Compression 11.4115.126.260
1 11.4115.126.270Damper Assy White Monarch Plus RC3 216x63 Mid Rebound/Mid Compression 11.4115.126.270
1 11.4115.126.280Damper Assy White Monarch Plus RC3 216x63 Mid Rebound/High Compression 11.4115.126.280
1 11.4115.126.290Damper Assy White Monarch Plus RC3 222x66 Mid Rebound/Low Compression 11.4115.126.290
1 11.4115.126.300Damper Assy White Monarch Plus RC3 222x66 Mid Rebound/Mid Compression 11.4115.126.300
1 11.4115.126.310Damper Assy White Monarch Plus RC3 222x66 Mid Rebound/High Compression 11.4115.126.310
2 11.4115.106.010Air Can Black Monarch/Plus RC3/RT/R(2011-2013) Monarch RT3 (2011-2012) 152x31 11.4115.106.010
2 11.4115.106.020Air Can Black Monarch/Plus RC3/RT/R(2011-2013) Monarch RT3 (2011-2012) 165x38 11.4115.106.020
2 11.4115.106.030Air Can Black Monarch/Plus RC3/RT/R(2011-2013) Monarch RT3 (2011-2012) 184x44 11.4115.106.030
2 11.4115.106.040Air Can Black Monarch/Plus RC3/RT/R(2011-2013) Monarch RT3 (2011-2012) 190x51 / 200x51 11.4115.106.040
2 11.4115.106.050Air Can Black Monarch/Plus RC3/RT/R(2011-2013) Monarch RT3 (2011-2012) 200x57 11.4115.106.050
2 11.4115.106.060Air Can Black Monarch/Plus RC3/RT/R(2011-2013) Monarch RT3 (2011-2012) 216x63 11.4115.106.060
2 11.4115.106.070Air Can Black Monarch/Plus RC3/RT/R(2011-2013) Monarch RT3 (2011-2012) 222x66 11.4115.106.070
2 11.4115.106.130Air Can White 2011-2012 Monarch/Plus 152x31 11.4115.106.130
2 11.4115.106.140Air Can White 2011-2012 Monarch/Plus 165x38 11.4115.106.140
2 11.4115.106.150Air Can White 2011-2012 Monarch/Plus 184x44 11.4115.106.150
2 11.4115.106.160Air Can White 2011-2012 Monarch/Plus 190x51 / 200x51 11.4115.106.160
2 11.4115.106.170Air Can White 2011-2012 Monarch/Plus 200x57 11.4115.106.170
2 11.4115.106.180Air Can White 2011-2012 Monarch/Plus 216x63 11.4115.106.180
2 11.4115.106.190Air Can White 2011-2012 Monarch/Plus 222x66 11.4115.106.190
3 11.4115.106.080Air Can Black HIGH VOLUME 2011-2012 Monarch/Plus RC3/RT3/RT/R 184x44 11.4115.106.080
3 11.4115.106.090Air Can Black HIGH VOLUME 2011-2012 Monarch/Plus RC3/RT3/RT/R 190x51 / 200x51 11.4115.106.090
3 11.4115.106.100Air Can Black HIGH VOLUME 2011-2012 Monarch/Plus RC3/RT3/RT/R 200x57 11.4115.106.100
3 11.4115.106.110Air Can Black HIGH VOLUME 2011-2012 Monarch/Plus RC3/RT3/RT/R 216x63 11.4115.106.110
3 11.4115.106.120Air Can Black HIGH VOLUME 2011-2012 Monarch/Plus RC3/RT3/RT/R 222x66 11.4115.106.120
3 11.4115.106.200Air Can White High Volume 2011-2012 Monarch/Plus 184x44 11.4115.106.200
3 11.4115.106.210Air Can White High Volume 2011-2012 Monarch/Plus 190x51 / 200x51 11.4115.106.210
3 11.4115.106.220Air Can White High Volume 2011-2012 Monarch/Plus 200x57 11.4115.106.220
3 11.4115.106.230Air Can White High Volume 2011-2012 Monarch/Plus 216x63 11.4115.106.230
3 11.4115.106.240Air Can White High Volume 2011-2012 Monarch/Plus 222x66 11.4115.106.240
3 11.4115.106.250Air Can Black High Volume HV4 2011-2012 Monarch/Plus 216x63 11.4115.106.250
3 11.4115.106.260Air Can Black High Volume HV3 2011-2012 Monarch/Plus 200x57 11.4115.106.260
3 11.4115.106.270Air Can Black High Volume HV6 2011-2012 Monarch/Plus 200x57 11.4115.106.270
4 11.4115.117.010Rebound Adjuster Assembly - Monarch Plus 11.4115.117.010
5 11.4115.119.010Compression Lever - Monarch Plus 11.4115.119.010
6 11.4115.118.010Eyelet/Reservoir Assembly Black LC - Monarch Plus RC3 11.4115.118.010
6 11.4115.118.020Eyelet/Reservoir Assembly Black MC - Monarch Plus RC3 11.4115.118.020
6 11.4115.118.030Eyelet/Reservoir Assembly Black HC - Monarch Plus RC3 11.4115.118.030
6 11.4115.118.040Eyelet/Reservoir Assembly White LC - Monarch Plus RC3 11.4115.118.040
6 11.4115.118.050Eyelet/Reservoir Assembly White MC - Monarch Plus RC3 11.4115.118.050
6 11.4115.118.060Eyelet/Reservoir Assembly White HC - Monarch Plus RC3 11.4115.118.060
6 11.4115.118.070Eyelet/Reservoir Assembly Black - Monarch Plus R 11.4115.118.070
6 11.4115.118.080Eyelet/Reservoir Assembly White - Monarch Plus R 11.4115.118.080
7 11.4115.120.010Reservoir Piston Assembly Medium - Monarch Plus RC3 11.4115.120.010
7 11.4115.120.020Reservoir Piston Assembly High - Monarch Plus RC3 11.4115.120.020
8 11.4115.121.010Reservoir Can Black - Monarch Plus 11.4115.121.010
8 11.4115.121.020Reservoir Can White - Monarch Plus 11.4115.121.020
9 11.4115.122.010Internal Floating Piston Assembly (reservoir) - Monarch Plus 11.4115.122.010
10 11.4115.123.010Top Cap Assembly (for Reservoir, Black) - Monarch Plus 11.4115.123.010
10 11.4115.123.020Top Cap Assembly (for Reservoir, White) - Monarch Plus 11.4115.123.020
11 Sram Air Valve Assembly - Monarch Plus (includes valve body, valve, valve cap) A1/B1 11.4115.124.010Air Valve Assembly - Monarch Plus (includes valve body, valve, valve cap) A1/B1 11.4115.124.010
12 11.4115.125.010Eyelet Black - Monarch Plus (includes eyelet, eyelet bushing, shaft oring) 11.4115.125.010
12 11.4115.125.020Eyelet White - Monarch Plus (includes eyelet, eyelet bushing, shaft oring) 11.4115.125.020
13 11.4115.127.010Shaft Kit/Piston/Tune Kit - ML 190x51/200x51 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.010
13 11.4115.127.020Shaft Kit/Piston/Tune Kit - MM 190x51/200x51 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.020
13 11.4115.127.030Shaft Kit/Piston/Tune Kit - MH 190x51/200x51 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.030
13 11.4115.127.040Shaft Kit/Piston/Tune Kit - ML 200x57/203x57 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.040
13 11.4115.127.050Shaft Kit/Piston/Tune Kit - MM 200x57/203x57 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.050
13 11.4115.127.060Shaft Kit/Piston/Tune Kit - MH 200x57/203x57 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.060
13 11.4115.127.070Shaft Kit/Piston/Tune Kit - ML 216x63 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.070
13 11.4115.127.080Shaft Kit/Piston/Tune Kit - MM 216x63 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.080
13 11.4115.127.090Shaft Kit/Piston/Tune Kit - MH 216x63 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.090
13 11.4115.127.100Shaft Kit/Piston/Tune Kit - MH3 216x63 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.100
13 11.4115.127.110Shaft Kit/Piston/Tune Kit - ML 222x66 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.110
13 11.4115.127.120Shaft Kit/Piston/Tune Kit - MM 222x66 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.120
13 11.4115.127.130Shaft Kit/Piston/Tune Kit - MH 222x66 - Monarch Plus (includes shaft separator, shaft, washer and seals) 11.4115.127.130
14 11.4115.110.010Fixed Piston Assembly - Monarch 2012 RT3/2012-2013 RT R XX/2013 RL 11.4115.110.010
15 11.4115.112.040Damper Body/IFP - Monarch RT3/RL/RT/R 190x51 11.4115.112.040
15 11.4115.112.050Damper Body/IFP - Monarch RT3/RL/RT/R 200x51 11.4115.112.050
15 Sram Damper Body/IFP - Monarch RT3/RL/RT/R 200x57 11.4115.112.060Damper Body/IFP - Monarch RT3/RL/RT/R 200x57 11.4115.112.060
15 11.4115.112.070Damper Body/IFP - Monarch RT3/RL/RT/R 203x57 11.4115.112.070
15 Sram Damper Body/IFP - Monarch RT3/RL/RT/R 216x63 11.4115.112.080Damper Body/IFP - Monarch RT3/RL/RT/R 216x63 11.4115.112.080
15 Sram Damper Body/IFP - Monarch RT3/RL/RT/R 222x66 11.4115.112.090Damper Body/IFP - Monarch RT3/RL/RT/R 222x66 11.4115.112.090
16 Sram Schrader Valve Core Qty 2 11.4308.327.002Schrader Valve Core Qty 2 11.4308.327.002
17 Sram Rear Shock Eyelet Bushing 1/2”X1/2” Qty 2 11.4115.013.000Rear Shock Eyelet Bushing 1/2”X1/2” Qty 2 11.4115.013.000
18 Sram Service Kit - Monarch Plus (does not include air can seals) 11.4115.129.010Service Kit - Monarch Plus (does not include air can seals) 11.4115.129.010
19 Sram AM Rear Shock Air Can Service Kit, Basic - Monarch/Monarch Plus (2012) 00.4315.032.240AM Rear Shock Air Can Service Kit, Basic - Monarch/Monarch Plus (2012) 00.4315.032.240
20 Sram AM Rear Shock Air Can High Volume Service Kit, Basic - Monarch/Monarch Plus (2012) 00.4315.032.250AM Rear Shock Air Can High Volume Service Kit, Basic - Monarch/Monarch Plus (2012) 00.4315.032.250
21 11.4115.039.000Monarch Air Can (HV) Tuning Kit 11.4115.039.000
ns 11.4318.003.198Decal Kit Kage R 11.4318.003.198
ns 11.4318.003.199Decal Kit Kage RC 11.4318.003.199
ns 11.4318.003.200Decal Kit Monarch Plus R White 11.4318.003.200
ns 11.4318.003.201Decal Kit Monarch Plus R Black 11.4318.003.201
ns 11.4318.003.202Decal Kit Monarch Plus R High Volume White 11.4318.003.202
ns 11.4318.003.203Decal Kit Monarch Plus R High Volume Black 11.4318.003.203
ns 11.4318.003.204Decal Kit Monarch Plus RC3 White 11.4318.003.204
ns 11.4318.003.205Decal Kit Monarch Plus RC3 Black 11.4318.003.205
ns 11.4115.115.010Decal, Rear Shock, Tune (ML) - 2011 Vivid/Monarch Qty 10 11.4115.115.010
ns 11.4115.115.020Decal, Rear Shock, Tune (MM) - 2011 Vivid/Monarch Qty 10 11.4115.115.020
ns 11.4115.115.030Decal, Rear Shock, Tune (MH) - 2011 Vivid/Monarch Qty 10 11.4115.115.030
ns 11.4115.115.040Decal, Rear Shock, Tune (ML3) - 2011 Vivid/Monarch Qty 10 11.4115.115.040
ns 11.4115.115.050Decal, Rear Shock, Tune (MH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.050
ns 11.4115.115.060Decal, Rear Shock, Tune (LL3) - 2011 Vivid/Monarch Qty 10 11.4115.115.060
ns 11.4115.115.070Decal, Rear Shock, Tune (LL) - 2011 Vivid/Monarch Qty 10 11.4115.115.070
ns 11.4115.115.080Decal, Rear Shock, Tune (LM) - 2011 Vivid/Monarch Qty 10 11.4115.115.080
ns 11.4115.115.090Decal, Rear Shock, Tune (LH) - 2011 Vivid/Monarch Qty 10 11.4115.115.090
ns 11.4115.115.100Decal, Rear Shock, Tune (LH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.100
ns 11.4115.115.110Decal, Rear Shock, Tune (HL) - 2011 Vivid/Monarch Qty 10 11.4115.115.110
ns 11.4115.115.120Decal, Rear Shock, Tune (HL3) - 2011 Vivid/Monarch Qty 10 11.4115.115.120
ns 11.4115.115.130Decal, Rear Shock, Tune (HM) - 2011 Vivid/Monarch Qty 10 11.4115.115.130
ns 11.4115.115.140Decal, Rear Shock, Tune (HH) - 2011 Vivid/Monarch Qty 10 11.4115.115.140
ns Sram Lubricant, Rear Shock Air Can, Maxima 15W 50, 1 Liter Bottle 11.4115.094.010Lubricant, Rear Shock Air Can, Maxima 15W 50, 1 Liter Bottle 11.4115.094.010
ns Sram Lubricant, Rear Shock Seals, Parker O-Lube, 2g tube 11.4115.094.020Lubricant, Rear Shock Seals, Parker O-Lube, 2g tube 11.4115.094.020
ns Sram Grease, PM600 Military Grease 14oz (for oring seals) 00.4315.014.010Grease, PM600 Military Grease 14oz (for oring seals) 00.4315.014.010
ns Sram RockShox Rear Suspension Damping Fluid 7wt 16oz bottle 11.4315.004.030RockShox Rear Suspension Damping Fluid 7wt 16oz bottle 11.4315.004.030
ns Sram RockShox Rear Suspension Damping Fluid 7wt 120ml bottle 11.4315.021.060RockShox Rear Suspension Damping Fluid 7wt 120ml bottle 11.4315.021.060
22 Sram Air Valve Adapter Tool - RockShox Monarch 00.4315.027.010Air Valve Adapter Tool - RockShox Monarch 00.4315.027.010
23 Sram Rear Shock Vise blocks, RockShox Monarch/Vivid/Vivid Air 00.4115.154.010Rear Shock Vise blocks, RockShox Monarch/Vivid/Vivid Air 00.4115.154.010
24 Sram 1/2”x1/2” Rear Shock Bushing Tool (Eyelet/SealHead) RockShox 00.4315.026.0101/2”x1/2” Rear Shock Bushing Tool (Eyelet/SealHead) RockShox 00.4315.026.010
ns Sram High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010
ns Sram High-Pressure Fork/Shock Pump (600 psi Max) RockShox 00.4315.023.030High-Pressure Fork/Shock Pump (600 psi Max) RockShox 00.4315.023.030
ns Sram Schrader Valve Removal Tool Rockshox 00.4315.022.010Schrader Valve Removal Tool Rockshox 00.4315.022.010
25 Sram Rear Shock Body Vise blocks, RockShox Monarch00.4118.013.000Rear Shock Body Vise blocks, RockShox Monarch 00.4118.013.000
