Sram BOXXER 35mm (A1-A2/2010-2014)

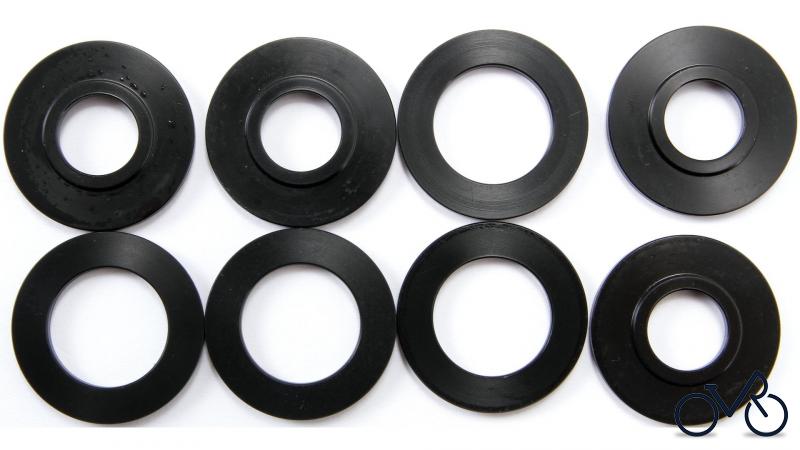

Coil Spring Pre-load Spacers, Qty 4 each - Boxxer Race/RC and Team/R2C2 2010-2014

Sram Coil Spring Pre-load Spacers, Qty 4 each - Boxxer Race/RC and Team/R2C2 2010-2014
Article Number:
11.4015.376.000
Pos:
25
19.95 €
for EU incl. VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.
Sram RockShox BOXXER 35mm (A1-A2/2010-2014)

Here you will find the spare parts drawing for Sram RockShox BOXXER 35mm (A1-A2/2010-2014). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
1 11.4018.006.030Lower Leg, Black/Silver - 2011-2014 Boxxer RC 11.4018.006.030
1 11.4018.006.031Lower Leg, White/Silver - 2011-2014 Boxxer RC 11.4018.006.031
1 11.4018.006.032Lower Leg, Diffusion Black/Silver - 2011-2014 Boxxer RC 11.4018.006.032
1 11.4018.006.033Lower Leg, Black/Silver - 2011-2014 Boxxer R2C2 11.4018.006.033
1 11.4018.006.034Lower Leg, White/Silver - 2011-2014 Boxxer R2C2 11.4018.006.034
1 11.4018.006.035Lower Leg, Diffusion Black/Silver - 2011-2014 Boxxer R2C2 11.4018.006.035
1 11.4018.006.036Lower Leg, Black/Silver - 2011-2014 Boxxer World Cup 11.4018.006.036
1 11.4018.006.037Lower Leg, White/Silver - 2011-2014 Boxxer World Cup 11.4018.006.037
1 11.4018.006.038Lower Leg, Diffusion Black/Silver - 2011-2014 Boxxer World Cup 11.4018.006.038
1 11.4018.006.039Lower Leg, Keronite/Safety Silver - 2011-2014 Boxxer World Cup 11.4018.006.039
2 Sram Lower Crown/Steerer Assembly Black - 2010-2014 Boxxer 35mm 11.4015.362.010Lower Crown/Steerer Assembly Black - 2010-2014 Boxxer 35mm 11.4015.362.010
2 11.4015.362.020Lower Crown/Steerer Assembly White - 2010-2014 Boxxer 35mm 11.4015.362.020
3 Sram Upper Tube Straight-Wall, Left (compatible only with Boxxer Solo Air Spring and Top Cap) - Boxxer 2011-2014 11.4015.363.020Upper Tube Straight-Wall, Left (compatible only with Boxxer Solo Air Spring and Top Cap) - Boxxer 2011-2014 11.4015.363.020
4 11.4015.363.010Upper Tube Taper-Wall, Right - 2010-2012 Boxxer 11.4015.363.010
4 Sram Upper Tube Taper-Wall, Right - Boxxer 2013-2014 11.4015.363.030Upper Tube Taper-Wall, Right - Boxxer 2013-2014 11.4015.363.030
5 Sram Dust Seal Kit, Qty 2 - 2010-2014 Boxxer 11.4015.358.000Dust Seal Kit, Qty 2 - 2010-2014 Boxxer 11.4015.358.000
6 11.4015.392.000Pressure Seal Kit, Qty 2 - 2010-2014 Boxxer 11.4015.392.000
8 11.4015.360.000Lower Leg Bottom-Out Bumper Kit, Qty 2 - 2010-2014 Boxxer 11.4015.360.000
9 Sram Shaft Bolt Kit - Boxxer 2010-2014 11.4015.391.000Shaft Bolt Kit - Boxxer 2010-2014 11.4015.391.000
10 Sram Domain/Lyrik/Totem/10-14 Boxxer RC - External Rebound Adjuster Knob & Shaft Bolt Kit 11.4015.074.000Domain/Lyrik/Totem/10-14 Boxxer RC - External Rebound Adjuster Knob & Shaft Bolt Kit 11.4015.074.000
11 11.4015.364.010Upper Crown, 35mm, Short, Black - Boxxer 11.4015.364.010
11 11.4015.364.020Upper Crown, 35mm, Short, White - Boxxer 11.4015.364.020
12 11.4015.364.050Upper Crown, 35mm, Tall, Black - Boxxer 11.4015.364.050
12 11.4015.364.060Upper Crown, 35mm, Tall, White - Boxxer 11.4015.364.060
13 11.4015.365.000Crown Hardware Kit (upper and lower crown bolts) - Boxxer 2010-2014 11.4015.365.000
14 Sram Adjuster Knob, Motion Control IS Compression Damper (2010-2014 Boxxer, Domain, Lyrik, Totem) 11.4015.367.000Adjuster Knob, Motion Control IS Compression Damper (2010-2014 Boxxer, Domain, Lyrik, Totem) 11.4015.367.000
18 Sram Rebound Damper and Seal Head Kit (includes shaft bolt and external rebound adjuster knob)- Boxxer Race/RC 2010-2014 11.4015.371.000Rebound Damper and Seal Head Kit (includes shaft bolt and external rebound adjuster knob)- Boxxer Race/RC 2010-2014 11.4015.371.000
19 Sram Rebound Damper Seal Head - Boxxer Race/RC 2010-2014 11.4015.372.000Rebound Damper Seal Head - Boxxer Race/RC 2010-2014 11.4015.372.000
15 Sram Compression Damper, Motion Control IS (includes compression adjuster knob) -Boxxer Race/RC 2010-2014 11.4015.368.000Compression Damper, Motion Control IS (includes compression adjuster knob) -Boxxer Race/RC 2010-2014 11.4015.368.000
ns 11.4015.371.010Rebound Damper and Seal Head Kit - 2010 Boxxer Team/World Cup (does not include shaft bolt and adjuster knobs) Cannot beused with 2011 compression Damper. 11.4015.371.010
21 11.4015.372.010Rebound Damper Seal Head - Boxxer Team/R2C2/World Cup 2010-2014 11.4015.372.010
16 11.4015.470.010Adjuster Knob Kit, Compression Damper, Mission Control DH (low speed, high speed, retaining screw) Cannot be used with 2010 compression damper - Boxxer R2C2/WC 2011-2014 11.4015.470.010
17 11.4015.471.010Compression Damper, Mission Control DH (includes high and low speed adjuster knobs) Cannot be used with 2010 rebound damper - Boxxer R2C2/WorldCup 2011-2014 11.4015.471.010
20 11.4015.516.010Rebound Damper and Seal Head Kit (does not include shaft bolt and adjuster knobs, cannot be used with 2010 compression damper) -Boxxer R2C2/World Cup 2011-2014 11.4015.516.010
22 Sram Rebound Damper Bottom Bolt/Adjust Knob Assembly (complete bottom bolt assembly with adjuster knobs) - Boxxer Team/R2C2/WC 2010-2014 11.4015.472.010Rebound Damper Bottom Bolt/Adjust Knob Assembly (complete bottom bolt assembly with adjuster knobs) - Boxxer Team/R2C2/WC 2010-2014 11.4015.472.010
23 11.4015.473.010Rebound Damper Adjuster Knob Kit (includes low-speed and hi-speed adjuster knobs) Not compatible with 2010 Boxxer R2C2/WC - Boxxer Team/WC 2011-2014 11.4015.473.010
24 11.4015.375.000Coil Spring Top Cap, Qty 1 - Boxxer Race 2010-2014 11.4015.375.000
25 Sram Coil Spring Pre-load Spacers, Qty 4 each - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.376.000Coil Spring Pre-load Spacers, Qty 4 each - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.376.000
26 11.4015.377.000Coil Top-Cap/Drop-Stop Assembly (adjuster knob) - Boxxer Team/R2C2 2010-2014 11.4015.377.000
27 11.4015.378.000Adjuster Knob/Set-Screw, Coil Top-Cap/Drop-Stop - Boxxer Team/R2C2 2010-2014 11.4015.378.000
28 11.4015.379.000Drop-Stop Bumper, Qty 1 - Boxxer Team/R2C2 2010-2014 11.4015.379.000
29 Sram Coil Spring, X-Soft, Silver - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.380.000Coil Spring, X-Soft, Silver - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.380.000
29 Sram Coil Spring, Soft, Yellow - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.380.010Coil Spring, Soft, Yellow - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.380.010
29 Sram Coil Spring, Medium, Red standard - Boxxer Race/RCand Team/R2C2 2010-2014 11.4015.380.020Coil Spring, Medium, Red standard - Boxxer Race/RCand Team/R2C2 2010-2014 11.4015.380.020
29 Sram Coil Spring, Firm, Blue - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.380.030Coil Spring, Firm, Blue - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.380.030
29 Sram Coil Spring, X-Firm, Black- Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.380.040Coil Spring, X-Firm, Black- Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.380.040
30 Sram Coil Spring Shaft (shaft bolt) - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.381.000Coil Spring Shaft (shaft bolt) - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.381.000
31 11.4015.382.000Coil Top-Out Spring Assembly - Boxxer Race/RC and Team/R2C2 2010-2014 11.4015.382.000
32 11.4015.383.000Solo Air Top Cap Assembly - 2010 Boxxer World Cup (cannot beused with 2011 Boxxer WC) 11.4015.383.000
33 11.4015.474.010Solo Air Top Cap Assembly (cannot be used with 2010 Boxxer WC) - Boxxer World Cup 2011-2014 11.4015.474.010
34 11.4015.385.00010 Boxxer World Cup Solo Air Spring Assembly (cannot be usedwith 2011 Boxxer World Cup) 11.4015.385.000
35 11.4015.475.020Solo Air Spring Assembly - 2011-2014 Boxxer World Cup (cannot be used with 2010 Boxxer WC) 11.4015.475.020
36 11.4015.464.010Solo Air Spring/Top Cap Assembly Retro Kit - 2010 Boxxer World Cup (includes 2011 Solo Air spring assy with 2010 upper tube base plate, and 2011 Solo Air Top Cap Assy, bothare required) 11.4015.464.010
37 11.4018.024.000Base Plate/Scraper Seal Boxxer Solo Air 2011 thru 2014 11.4018.024.000
38 Sram Upper Tube/Frame Bumper Stop, Qty 2 - 2010-2014 Boxxer 35mm 11.4015.361.000Upper Tube/Frame Bumper Stop, Qty 2 - 2010-2014 Boxxer 35mm 11.4015.361.000
ns Sram Service Kit - Boxxer Race/RC 2010-2014 11.4015.386.000Service Kit - Boxxer Race/RC 2010-2014 11.4015.386.000
ns Sram Service Kit - 2010 Boxxer Team 11.4015.387.000Service Kit - 2010 Boxxer Team 11.4015.387.000
ns Sram Service Kit - 2010 Boxxer World Cup 11.4015.388.000Service Kit - 2010 Boxxer World Cup 11.4015.388.000
ns Sram Service Kit - 2011-2014 Boxxer R2C2/WC 11.4015.476.020Service Kit - 2011-2014 Boxxer R2C2/WC 11.4015.476.020
ns Sram AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Boxxer RC (2012-2014) 00.4315.032.150AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Boxxer RC (2012-2014) 00.4315.032.150
ns Sram AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Boxxer R2C2 (2012-2014) 00.4315.032.160AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Boxxer R2C2 (2012-2014) 00.4315.032.160
ns Sram AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Boxxer World Cup (2012-2014) 00.4315.032.170AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Boxxer World Cup (2012-2014) 00.4315.032.170
39 11.4015.366.000Maxle DH Axle Assembly - Boxxer 2010-2014 11.4015.366.000
40 11.4015.366.010Maxle DH, Wedge/Lever/Axle Kit - Boxxer 2010-2014 11.4015.366.010
41 11.4015.066.000Dust Seal 35mm - Domain/Lyrik/Boxxer Qty 20 11.4015.066.000
42 11.4015.200.000Oil Seal 35mm - Lyrik/Domain/Boxxer Qty 20 11.4015.200.000
43 Sram Schrader Valve Core Qty 2 11.4308.327.002Schrader Valve Core Qty 2 11.4308.327.002
ns 11.4015.455.000Cir-Clip, Rebound Knob, 2010 Boxxer Team/WC (35mm), Qty 20 11.4015.455.000
ns Sram Kit Disk Brake Cable Accessory 11.4309.073.000Kit Disk Brake Cable Accessory 11.4309.073.000
ns Sram Schrader Valve Removal Tool Rockshox 00.4315.022.010Schrader Valve Removal Tool Rockshox 00.4315.022.010
ns Sram Air Pump (high pressure/high volume convertable) RockShox Boxxer 00.4315.023.020Air Pump (high pressure/high volume convertable) RockShox Boxxer 00.4315.023.020
ns Sram High-Pressure Fork/Shock Pump (600 psi Max) RockShox00.4315.023.030High-Pressure Fork/Shock Pump (600 psi Max) RockShox 00.4315.023.030
