Sram LYRIK (A1-A2/2010-2014)

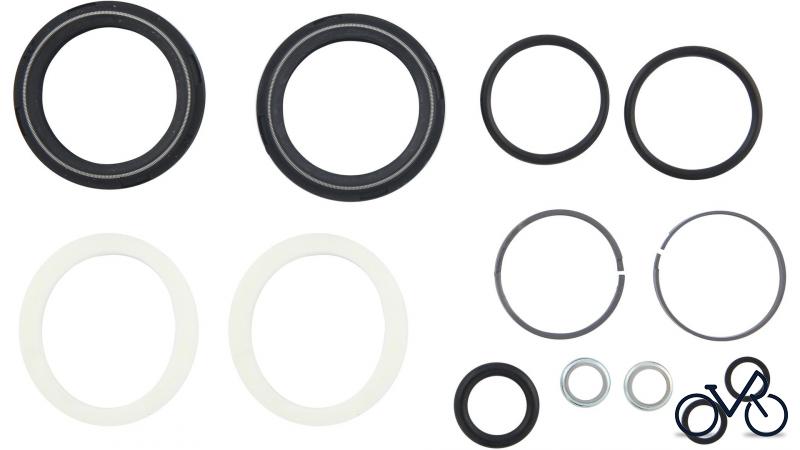

AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Lyrik Coil (2012-2014)

Sram AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Lyrik Coil (2012-2014)
Article Number:
00.4315.032.090
Pos:
ns
49.36 €
for EU incl. VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.
Sram RockShox LYRIK (A1-A2/2010-2014)

Here you will find the spare parts drawing for Sram RockShox LYRIK (A1-A2/2010-2014). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
1 11.4018.006.043Lower Leg, Black/Silver - Lyrik 11.4018.006.043
1 11.4018.006.044Lower Leg, White/Silver - Lyrik 11.4018.006.044
1 11.4018.006.045Lower Leg, Diffusion Black/Silver - Lyrik 11.4018.006.045
1 11.4015.070.000Domain/Lyrik Lower Leg Diffusion Black (180mm max travel) nodecals 11.4015.070.000
1 11.4015.224.000Domain/Lyrik Lower Leg White (180mm max travel) no decals 11.4015.224.000
1 11.4015.069.000Domain/Lyrik Lower Leg, Black (180mm max travel) no decals 11.4015.069.000
2a 11.4015.411.070CSU, U-Turn, Black Crown, AL Steerer 1 1/8” - Lyrik 11.4015.411.070
2a 11.4015.411.100CSU, Coil/Solo Air, White Crown, AL Steerer 1 1/8” - Lyrik 11.4015.411.100
2a 11.4018.008.180CSU Lyrik Solo Air/Coil 1/18 Black 11.4018.008.180
2a 11.4018.008.181CSU Lyrik Solo Air/Coil 1/18 Diffusion Black 11.4018.008.181
2a 11.4015.411.120CSU, 2-Step/Dual Position Air, White Crown, AL Steerer 1 1/8” - Lyrik 11.4015.411.120
2a 11.4015.411.210CSU, 2-Step/Dual Position Air, Gloss Black Crown, AL Steerer 1 1/8” - Lyrik 11.4015.411.210
2a 11.4018.008.182CSU Lyrik Dual Position Air 1/18 Diffusion Black 11.4018.008.182
2b 11.4015.411.130CSU, U-Turn, Black Crown, AL Steerer Tapered - Lyrik 11.4015.411.130
2b 11.4015.411.160CSU, Coil/Solo Air, White Crown, AL Steerer Tapered - Lyrik 11.4015.411.160
2b 11.4018.008.183CSU Lyrik Solo Air/Coil Taper Black 11.4018.008.183
2b 11.4018.008.185CSU Lyrik Solo Air/Coil 11/4 Taper T2 Black 11.4018.008.185
2b 11.4015.411.180CSU, 2-Step/Dual Position Air, White Crown, AL Steerer Tapered - Lyrik 11.4015.411.180
2b 11.4015.411.190CSU, 2-Step/Dual Position Air, Black Crown AL Steerer Tapered - Lyrik180 11.4015.411.190
2b 11.4015.411.220CSU, 2-Step/Dual Position Air, Gloss Black Crown, AL Steerer Tapered - Lyrik 11.4015.411.220
2b 11.4018.008.184CSU Lyrik Dual Position Air Taper Diffusion Black 11.4018.008.184
2b 11.4018.008.207CSU Lyrik Solo Air/Coil Taper Diffusion Black 11.4018.008.207
2c 11.4015.411.010CSU, U-Turn, Black Crown, AL Steerer 1.5” - Lyrik 11.4015.411.010
2c 11.4015.411.030CSU, Coil/Solo Air, Black Crown, AL Steerer 1.5” - Lyrik 11.4015.411.030
2c 11.4015.411.040CSU, Coil/Solo Air, White Crown, AL Steerer 1.5” - Lyrik 11.4015.411.040
2c 11.4015.411.060CSU, 2-Step/Dual Position Air, White Crown, AL Steerer 1.5” - Lyrik 11.4015.411.060
2c 11.4015.411.200CSU, 2-Step/Dual Position Air, Gloss Black Crown, AL Steerer 1.5” - Lyrik 11.4015.411.200
3 Sram Domain/Lyrik Dust Seal/Oil Seal Kit 11.4015.067.000Domain/Lyrik Dust Seal/Oil Seal Kit 11.4015.067.000
4 11.4015.065.000Domain/Lyrik Bushing Kit 11.4015.065.000
5 11.4015.403.030Shaft Fastener Kit (Alum) - 2012 Lyrik/Totem (shaft bolts and air shaft nut) (compatible with all Lyrik models and years) 11.4015.403.030
6 Sram Domain/Lyrik/Totem/10-14 Boxxer RC - External Rebound Adjuster Knob & Shaft Bolt Kit 11.4015.074.000Domain/Lyrik/Totem/10-14 Boxxer RC - External Rebound Adjuster Knob & Shaft Bolt Kit 11.4015.074.000
7 11.4015.351.000LyrikR Rebound Top Cap 11.4015.351.000
8 11.4015.547.060Knob Kit, Compression Damper, Mission Control - Lyrik/Totem A1-A3 (2012-2014) 11.4015.547.060
9 11.4015.547.070Knob Kit, Compression Damper, Mission Control DH - Lyrik/Totem A1-A3 (2012-2014) 11.4015.547.070
10 Sram Adjuster Knob, Motion Control IS Compression Damper (2010-2014 Boxxer, Domain, Lyrik, Totem) 11.4015.367.000Adjuster Knob, Motion Control IS Compression Damper (2010-2014 Boxxer, Domain, Lyrik, Totem) 11.4015.367.000
11 11.4015.528.010Remote Spool and Clamp Kit - 2011 Lyrik 180 RLR (for remote compression damper) 11.4015.528.010
12 Sram Compression Damper Remote (Motion Control IS) - 2011 Lyrik 180 RLR (compatible with all Lyrik models and years) 11.4015.415.070Compression Damper Remote (Motion Control IS) - 2011 Lyrik 180 RLR (compatible with all Lyrik models and years) 11.4015.415.070
13 11.4015.544.150Compression Damper, Mission Control (w/ Floodgate) - 2012 Lyrik (includes comp knobs, compatible with all Lyrik models and years) 11.4015.544.150
14 11.4015.544.160Compression Damper, Mission Control DH (no Floodgate) - 2012Lyrik (includes comp knobs, compatible with all Lyrik model s and years) 11.4015.544.160
15 11.4015.544.170Compression Damper, Motion Control IS - 2012 Lyrik (includescomp knobs, compatible with all Lyrik models and years) 11.4015.544.170
16 11.4015.416.010Rebound Damper, Motion Control IS - Lyrik/2010-2012 Totem (compatible with all Lyrik models and years) (includes reboundadjuster knob) 11.4015.416.010
17 Sram Rebound Damper, Mission Control/Mission Control DH - 2010-2012 Lyrik (Alum Shaft) (compatible with all Lyrik models and years) (includes rebound adjuster knob) 11.4015.416.020Rebound Damper, Mission Control/Mission Control DH - 2010-2012 Lyrik (Alum Shaft) (compatible with all Lyrik models and years) (includes rebound adjuster knob) 11.4015.416.020
18 11.4015.416.040Rebound Damper and Seal Head - 2010-2014 Lyrik 180 RLR Plus (alum shaft, includes rebound adjuster knob) 11.4015.416.040
19 Sram U-Turn Travel Adjuster Knob Aluminum (Coil) Lever 11.4310.717.000U-Turn Travel Adjuster Knob Aluminum (Coil) Lever 11.4310.717.000
20 11.4015.458.010Lyrik Coil/U-Turn Top Out Assembly 11.4015.458.010
21 Sram Top Cap, Coil - 2010-2014 Lyrik 11.4015.420.010Top Cap, Coil - 2010-2014 Lyrik 11.4015.420.010
22 11.4015.043.000Domain/Lyrik Spring PreLoad Spacers qty 2 11.4015.043.000
23 Sram Spring Shaft Assy, 170mm - 2010-2014 Lyrik 11.4015.421.010Spring Shaft Assy, 170mm - 2010-2014 Lyrik 11.4015.421.010
24 11.4015.422.010Spring, Coil, 170mm, X-Soft Silver - 2010-2014 Lyrik 11.4015.422.010
24 11.4015.422.020Spring, Coil, 170mm, Soft Yellow - 2010-2014 Lyrik 11.4015.422.020
24 Sram Spring, Coil, 170mm, Medium Red - 2010-2014 Lyrik 11.4015.422.030Spring, Coil, 170mm, Medium Red - 2010-2014 Lyrik 11.4015.422.030
24 Sram Spring, Coil, 170mm, Firm Blue - 2010-2014 Lyrik 11.4015.422.040Spring, Coil, 170mm, Firm Blue - 2010-2014 Lyrik 11.4015.422.040
24 Sram Spring, Coil, 170mm, X-Firm Black - 2010-2014 Lyrik 11.4015.422.050Spring, Coil, 170mm, X-Firm Black - 2010-2014 Lyrik 11.4015.422.050
25 11.4015.083.000Lyrik Air Top Cap Kit 11.4015.083.000
ns Sram AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Lyrik Coil (2012-2014) 00.4315.032.090AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Lyrik Coil (2012-2014) 00.4315.032.090
ns Sram AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Lyrik Dual Position Air (2012-2014) 00.4315.032.110AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Lyrik Dual Position Air (2012-2014) 00.4315.032.110
ns Sram AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Lyrik Solo Air (2012-2014) 00.4315.032.100AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Lyrik Solo Air (2012-2014) 00.4315.032.100
ns 11.4015.419.010Service Kit, Solo Air - 2010-2014 Lyrik 11.4015.419.010
ns 11.4015.465.010Service Kit, 2-Step Air - Lyrik NEW 2010-2011 (includes updated air piston, new piston coil spring, floating piston assy, seal head assy) 11.4015.465.010
ns Sram Lyrik Damper (Comp/Rebound) Service Kit 11.4015.087.000Lyrik Damper (Comp/Rebound) Service Kit 11.4015.087.000
26 11.4018.010.080Spring Internals Left Solo Air Lyrik 160 (includesair top cap, solo air spring and shaft bolt) 2007-2014 11.4018.010.080
26 11.4018.010.081Spring Internals Left Solo Air Lyrik 170 (includesair top cap, solo air spring and shaft bolt) 2007-2014 11.4018.010.081
26 11.4018.010.082Spring Internals Left Solo Air Lyrik 180 (includesair top cap, solo air spring and shaft bolt) 2007-2014 11.4018.010.082
26 11.4018.010.083Spring Internals Left Dual Position Air Lyrik 160 (includes air top cap, adjuster knob, Dual Spring Assembly and shaft bolt) 2007-2014 11.4018.010.083
26 11.4018.010.084Spring Internals Left Dual Position Air Lyrik 180 (includes air top cap, adjuster knob, Dual Spring Assembly and shaft bolt) 2007-2014 11.4018.010.084
27 11.4018.013.000Base Plate (Solo Air) Lyrik - 160mm 2007-2013 11.4018.013.000
27 11.4018.013.001Base Plate (Solo Air) Lyrik - 170mm 2007-2013 11.4018.013.001
27 11.4018.013.002Base Plate (Solo Air) Lyrik - 180mm 2007-2013 11.4018.013.002
27a 11.4018.024.001Base Plate/Scraper seal Lyrik Solo Air 150mm 2012-2014 11.4018.024.001
27a 11.4018.024.002Base Plate/Scraper seal Lyrik Solo Air 160mm 2012-2014 11.4018.024.002
27a 11.4018.024.003Base Plate/Scraper seal Lyrik Solo Air 170mm 2012-2014 11.4018.024.003
27a 11.4018.024.004Base Plate/Scraper seal Lyrik Solo Air 180mm 2012-2014 11.4018.024.004
28 11.4015.551.030Dual Position Air Spring 160mm/Top Cap/Aluminum Adjuster Knob Assembly (complete) - 2012 Lyrik 11.4015.551.030
28 11.4015.551.040Dual Position Air Spring 170mm/Top Cap/Aluminum Adjuster Knob Assembly (complete) - 2012 Lyrik 11.4015.551.040
28 11.4015.551.050Dual Position Air Spring 180mm/Top Cap/Aluminum Adjuster Knob Assembly (complete) - 2012 Lyrik 11.4015.551.050
29 11.4018.013.003Base Plate (Dual Position Air) Lyrik - 160mm 2007-2013 11.4018.013.003
29 11.4018.013.004Base Plate (Dual Position Air) Lyrik - 180mm 2007-2013 11.4018.013.004
30 Sram Maxle Lite FR 20mm, Black (35mm/40mm, Chassis) 2011 00.4315.013.030Maxle Lite FR 20mm, Black (35mm/40mm, Chassis) 2011 00.4315.013.030
31 11.4311.722.020Lever/Wedge Kit, Maxle Lite 20mm (32mm/35mm/40mm) 2011 11.4311.722.020
32 11.4015.558.020Retaining Ring, Upper Tube, 35mm - Qty 2 11.4015.558.020
33 Sram Schrader Valve Core Qty 2 11.4308.327.002Schrader Valve Core Qty 2 11.4308.327.002
ns 11.4015.205.000Domain/Lyrik Upper Tube/Spring Sleeve 11.4015.205.000
bulk Sram Crush Washer 8mm, Qty 50 11.4015.259.000Crush Washer 8mm, Qty 50 11.4015.259.000
bulk Sram Crush Washer Retainer, Qty 50 11.4015.260.000Crush Washer Retainer, Qty 50 11.4015.260.000
bulk 11.4015.066.000Dust Seal 35mm - Domain/Lyrik/Boxxer Qty 20 11.4015.066.000
bulk 11.4015.200.000Oil Seal 35mm - Lyrik/Domain/Boxxer Qty 20 11.4015.200.000
ns Sram Kit Disk Brake Cable Accessory 11.4309.073.000Kit Disk Brake Cable Accessory 11.4309.073.000
ns Sram High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010
ns Sram Schrader Valve Removal Tool Rockshox00.4315.022.010Schrader Valve Removal Tool Rockshox 00.4315.022.010
