Sram REBA-10 Boost - A7-A9 (2018-2025)

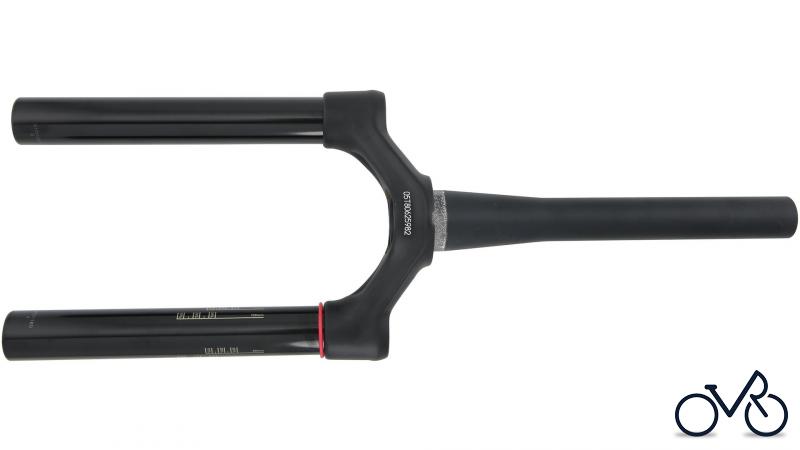

FORK CSU - SOLO AIR 2927+ BOOST™ 51 OFF-SET ALUMINUM TAPER DIFFUSION BLACK (NO GRADIENTS) - SID RLC A1/SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025)

Sram FORK CSU - SOLO AIR 2927+ BOOST™ 51 OFF-SET ALUMINUM TAPER DIFFUSION BLACK (NO GRADIENTS) - SID RLC A1/SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025)
Article Number:
11.4018.008.478
Pos:
2
388.49 €
for EU incl. VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.
FS-REBA-10B-A7, FS-REBA-10B-A8, FS-REBA-10B-A9
Sram RockShox REBA-10 Boost - A7-A9 (2018-2025)

Here you will find the spare parts drawing for Sram RockShox REBA-10 Boost - A7-A9 (2018-2025). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
U1 Sram DAMPER UPGRADE KIT - CHARGER RLC,100 MAX TRAVEL, CROWN ADJUST (INCLUDES COMPLETE RIGHT SIDE INTERNALS) - SID RLC (A1-B1/2017-2019)/SID RL,XX,WC(B1+/ 2017+)/REBA-10 A7-A9/2018-2025) 00.4018.783.009 DAMPER UPGRADE KIT - CHARGER RLC,100 MAX TRAVEL, CROWN ADJUST (INCLUDES COMPLETE RIGHT SIDE INTERNALS) - SID RLC (A1-B1/2017-2019)/SID RL,XX,WC(B1+/ 2017+)/REBA-10 A7-A9/2018-2025) 00.4018.783.009
U2 Sram DAMPER UPGRADE KIT - CHARGER RLC,100 MAX TRAVEL, REMOTE (INCLUDES RIGHT SIDE INTERNALS, ONELOC REMOTE) - SID RLC(A1-B1/2017-2019)/SID RL,XX,WC(B1+/ 2017+)/REBA-10 A7-A9/2018-2025) 00.4018.783.010 DAMPER UPGRADE KIT - CHARGER RLC,100 MAX TRAVEL, REMOTE (INCLUDES RIGHT SIDE INTERNALS, ONELOC REMOTE) - SID RLC(A1-B1/2017-2019)/SID RL,XX,WC(B1+/ 2017+)/REBA-10 A7-A9/2018-2025) 00.4018.783.010
U3 Sram FORK DUST WIPER UPGRADE KIT - 32MM BLACK FLANGELESS ULTRA-LOW FRICTION SKF SEALS (INCLUDES DUST WIPERS, 4MM FOAM RINGS) - REBA/BLUTO/RS-1/SID B1 (2017+)/32MM BOOST™ FORKS 00.4318.045.003 FORK DUST WIPER UPGRADE KIT - 32MM BLACK FLANGELESS ULTRA-LOW FRICTION SKF SEALS (INCLUDES DUST WIPERS, 4MM FOAM RINGS) - REBA/BLUTO/RS-1/SID B1 (2017+)/32MM BOOST™ FORKS 00.4318.045.003
U4 Sram FORK SPRING SEALHEAD - 32MM DEBONAIR BLACK (REPLACES FLOATING SEALHEAD, BASEPLATE, WAVE WASHER) SID A1-A4(2011-2016),REBA-10/REBA-12/REBA-15 A2-A9(2013-2025),BLUTO A1+(2015+) 11.4018.096.002 FORK SPRING SEALHEAD - 32MM DEBONAIR BLACK (REPLACES FLOATING SEALHEAD, BASEPLATE, WAVE WASHER) SID A1-A4(2011-2016),REBA-10/REBA-12/REBA-15 A2-A9(2013-2025),BLUTO A1+(2015+) 11.4018.096.002
ns 00.4318.087.000 Damper Upgrade Kit - CHARGER RACE DAY2 3- Position SID SL 32mm Crown (includes complete right side internals) - Reba A7 (2018+)/SID 100-110mm A1+ (2017+) 00.4318.087.000
ns 00.4318.087.001 Damper Upgrade Kit - CHARGER RACE DAY2 3- Position SID SL 32mm Remote (includes complete right side internals,remote sold separately) - Reba100 A7 (2018+)/SID 100-110mm B1+ (2017+) 00.4318.087.001
ns 00.4318.086.000 Damper Upgrade Kit - CHARGER RACE DAY2 2- Position SID SL 32mm Crown (includes complete right side internals) - Reba100 A7 (2018+)/SID 100-110mm A1+ (2017+) 00.4318.086.000
ns 00.4318.086.001 Damper Upgrade Kit - CHARGER RACE DAY2 2- Position SID SL 32mm Remote (includes complete right side internals,remote sold separately) - Reba100 A7 (2018+)/SID 100-110mm B1+ (2017+) 00.4318.086.001
200h Sram 200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS) - REBA-10 BOOSTA7-A9/REBA-10 NONBOOST A7-A8, REBA-12 BOOST A5-A9 (2017-2025) 00.4315.032.632 200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS) - REBA-10 BOOSTA7-A9/REBA-10 NONBOOST A7-A8, REBA-12 BOOST A5-A9 (2017-2025) 00.4315.032.632
1 11.4018.006.262 FORK LOWER LEG - (DECALS NOT INCLUDED) 29 15X110 BOOST™ BLACK - SID RLC A1/SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025), SID SELECT/SELECT+ B4 80-100MM (2020+) 11.4018.006.262
1 11.4018.006.264 FORK LOWER LEG - (DECALS NOT INCLUDED) 29 15X110 BOOST™ DIFFUSION BLACK - SID RLC A1/SID XX/RL B1 (2017+) , REBA-10 A7-A9(2018-2025), SID SELECT/SELECT+ B4 80-100MM (2020+) 11.4018.006.264
1 11.4018.006.267 FORK LOWER LEG - (DECALS NOT INCLUDED) 27 15X110 BOOST™ DIFFUSION BLACK - SID RLC A1/SID XX/RL B1 (2017+) , REBA-10 A7-A9(2018-2025),SID SELECT/SELECT+ B4 80-100MM (2020+) 11.4018.006.267
2 11.4018.008.473 FORK CSU - SOLO AIR 27 BOOST™ 42 OFF-SET ALUMINUM TAPER BLACK (NO GRADIENTS) - SID RLCA1/SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025) 11.4018.008.473
2 11.4018.008.475 FORK CSU - SOLO AIR 27 BOOST™ 42 OFF-SET ALUMINUM TAPER DIFFUSION BLACK (NO GRADIENTS) SID RLC A1/SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025) 11.4018.008.475
2 11.4018.008.476 FORK CSU - SOLO AIR 2927+ BOOST™ 51 OFF-SET ALUMINUM TAPER BLACK (NO GRADIENTS) - SID RLC A1/SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025) 11.4018.008.476
2 Sram FORK CSU - SOLO AIR 2927+ BOOST™ 51 OFF-SET ALUMINUM TAPER DIFFUSION BLACK (NO GRADIENTS) - SID RLC A1/SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025) 11.4018.008.478 FORK CSU - SOLO AIR 2927+ BOOST™ 51 OFF-SET ALUMINUM TAPER DIFFUSION BLACK (NO GRADIENTS) - SID RLC A1/SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025) 11.4018.008.478
4 Sram FORK SPRING SOLO AIR ASSEMBLY - 100MM-29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - SID RLC A1/ SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025) 11.4018.010.205 FORK SPRING SOLO AIR ASSEMBLY - 100MM-29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - SID RLC A1/ SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025) 11.4018.010.205
4 Sram FORK SPRING SOLO AIR ASSEMBLY - 100MM-27.5 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - SID RLC A1/ SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025) 11.4018.010.206 FORK SPRING SOLO AIR ASSEMBLY - 100MM-27.5 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - SID RLC A1/ SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025) 11.4018.010.206
4 11.4018.010.207 FORK SPRING SOLO AIR ASSEMBLY - 80MM-29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - SID RLC A1/ SID XX/RL B1 (2017+), REBA-10 A7-A9(2018-2025) 11.4018.010.207
5 Sram FORK SPRING SOLO AIR SHAFT - 100MM-29 - SID RLC A1+, SID XX, RL B1+(2017+), REBA-10 A7-A9(2018-2025) 11.4018.026.021 FORK SPRING SOLO AIR SHAFT - 100MM-29 - SID RLC A1+, SID XX, RL B1+(2017+), REBA-10 A7-A9(2018-2025) 11.4018.026.021
6 Sram FORK SPRING AIR TOP CAP - 32MM SPLINE (INCLUDES TOP CAP, VALVE COVER, USES CASSETTE TOOL) - SID B1-B4 (2017-2020),SID SL C1+ (2021+),REBA-10/REBA-12/REBA-15 A2-A8(2018-2025) 11.4018.012.011 FORK SPRING AIR TOP CAP - 32MM SPLINE (INCLUDES TOP CAP, VALVE COVER, USES CASSETTE TOOL) - SID B1-B4 (2017-2020),SID SL C1+ (2021+),REBA-10/REBA-12/REBA-15 A2-A8(2018-2025) 11.4018.012.011
6 Sram FORK SPRING AIR TOP CAP - 32MM SOLO AIR/DEBONAIR (INCLUDES 5 TOKENS, INTERNALLY THREADED AIR CAP) REBA/SID/REVELATION/RS-1/BLUTO/ARGYLE RCT 11.4018.032.002 FORK SPRING AIR TOP CAP - 32MM SOLO AIR/DEBONAIR (INCLUDES 5 TOKENS, INTERNALLY THREADED AIR CAP) REBA/SID/REVELATION/RS-1/BLUTO/ARGYLE RCT 11.4018.032.002
7 Sram FORK SPRING BOTTOMLESS TOKENS - SOLO AIR/DEBONAIR (QTY 5) - SID/REBA/REVELATION/RS-1/BLUTO/ARGYLE RCT SOLO AIR/35G 11.4018.032.003 FORK SPRING BOTTOMLESS TOKENS - SOLO AIR/DEBONAIR (QTY 5) - SID/REBA/REVELATION/RS-1/BLUTO/ARGYLE RCT SOLO AIR/35G 11.4018.032.003
ns Sram AIR VALVE KIT - SCHRADER CORE (QTY 2) - FORKS/SHOCKS/REVERB 11.4308.327.002 AIR VALVE KIT - SCHRADER CORE (QTY 2) - FORKS/SHOCKS/REVERB 11.4308.327.002
8 Sram REMOTE - ONELOC LEFT/ABOVE, RIGHT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+), CHARGER DAMPERS 00.4318.002.009 REMOTE - ONELOC LEFT/ABOVE, RIGHT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+), CHARGER DAMPERS 00.4318.002.009
8 Sram REMOTE - ONELOC RIGHT/ABOVE, LEFT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+), CHARGER DAMPERS 00.4318.002.010 REMOTE - ONELOC RIGHT/ABOVE, LEFT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+), CHARGER DAMPERS 00.4318.002.010
ns 00.4318.079.000 Remote - TwistLoc Ultimate Full Sprint Left 2 Position (Includes Cables, Housing, Left and Right Textured Grips) - 2 Position Remote Forks and Shocks B1 00.4318.079.000
ns 00.4318.059.000 Remote - TwistLoc Base Full Sprint Left 2 Position (Includes Cables, Housing, Left and Right Grips) - 2 Position Remote Forks and Shocks B1 00.4318.059.000
ns 00.4318.079.001 REMOTE - TWISTLOC ULTIMATE FULL SPRINT LEFT 3 POSITION (INCLUDES CABLES, HOUSING, LEFT AND RIGHT TEXTURED GRIPS) - 3 POSITION REMOTE FORKS AND SHOCKS B 00.4318.079.001
ns 00.4318.059.001 REMOTE - TWISTLOC BASE FULL SPRINT LEFT 3 POSITION (INCLUDES CABLES, HOUSING, LEFT AND RIGHT GRIPS) - 3 POSITION REMOTE FORKS AND SHOCKS B1 00.4318.059.001
9 Sram FORK REBOUND DAMPER - (INCLUDES SHAFT BOLT, SEALHEAD) - RAPID RECOVERY REBA 27/29 A5, BLUTO26 A1-A3, REBA-10/REBA-12 A5-A9(2016-2025) 11.4018.025.011 FORK REBOUND DAMPER - (INCLUDES SHAFT BOLT, SEALHEAD) - RAPID RECOVERY REBA 27/29 A5, BLUTO26 A1-A3, REBA-10/REBA-12 A5-A9(2016-2025) 11.4018.025.011
10a Sram FORK COMPRESSION DAMPER - CROWN, MOCO RL (INCLUDES COMPRESSION KNOB, SCREW) - BLUTO A1,RREBA-10/REBA-12 A5-A9(2018-2025) 11.4015.544.330 FORK COMPRESSION DAMPER - CROWN, MOCO RL (INCLUDES COMPRESSION KNOB, SCREW) - BLUTO A1,RREBA-10/REBA-12 A5-A9(2018-2025) 11.4015.544.330
10b Sram FORK COMPRESSION DAMPER - REMOTE 10MM (2013+ PUSHLOC, ONELOC, TWISTLOC) MOCO (INCLUDES SPOOL, CABLE CLAMP, SCREW),REBA-10/REBA-12 A6-A9(2018-2025) 11.4015.544.420 FORK COMPRESSION DAMPER - REMOTE 10MM (2013+ PUSHLOC, ONELOC, TWISTLOC) MOCO (INCLUDES SPOOL, CABLE CLAMP, SCREW),REBA-10/REBA-12 A6-A9(2018-2025) 11.4015.544.420
11 Sram FORK DAMPER SEALHEAD ASSEMBLY - MOCO 32MM12.5ALUMINUM SHAFT-SIDB(2014-2016),REVELATION 2014-2017,BLUTO RLT(2015-2022),SID XX/RL B1(2017+),REBA-10/REBA-12 A7-A9(2018-2025) 11.4015.353.080 FORK DAMPER SEALHEAD ASSEMBLY - MOCO 32MM12.5ALUMINUM SHAFT-SIDB(2014-2016),REVELATION 2014-2017,BLUTO RLT(2015-2022),SID XX/RL B1(2017+),REBA-10/REBA-12 A7-A9(2018-2025) 11.4015.353.080
18 Sram FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB, BOLT) 29 REBA-10/REBA-12/REBA-15 A7-A9,SID B2-B4(2017-2020),SID SELECTC1/SID SL SELECTC1/SID RLC3(2021)/SID BASE C1+(2022+) 11.4018.082.014 FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB, BOLT) 29 REBA-10/REBA-12/REBA-15 A7-A9,SID B2-B4(2017-2020),SID SELECTC1/SID SL SELECTC1/SID RLC3(2021)/SID BASE C1+(2022+) 11.4018.082.014
18 Sram FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB, BOLT) - 27.5 - SID B2+ (2017+),REBA-10/REBA-12/REBA-15 A7-A9(2018-2025) 11.4018.082.015 FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB, BOLT) - 27.5 - SID B2+ (2017+),REBA-10/REBA-12/REBA-15 A7-A9(2018-2025) 11.4018.082.015
12 Sram FORK CRUSH WASHERS - 8MM (QTY 50) 11.4015.259.000 FORK CRUSH WASHERS - 8MM (QTY 50) 11.4015.259.000
15 11.4018.028.015 FORK FOAM RING KIT - 32MM X 4MM (QTY 20) - SID RLC A1/SID XX/RL B1 (2017+)/RECON BOOST RL C1/TK B1 (2020+),(REBA-10/REBA-12/REBA-15 BOOST) 11.4018.028.015
16 Sram FORK HOSE CLAMP - SID RLC A1/SID XX/RL B1-B4 (2017-2020), REBA-10 A7-A9(2018-2025), RECON GOLD C1/SEKTOR C1 11.4015.534.011 FORK HOSE CLAMP - SID RLC A1/SID XX/RL B1-B4 (2017-2020), REBA-10 A7-A9(2018-2025), RECON GOLD C1/SEKTOR C1 11.4015.534.011
17a Sram FORK LOWER LEG BUMP STOP - 29 - SID RLC A1/SID XX/RL B1 (2017+)/ SID B4 (2020), REBA-10 A7-A9(2018-2025) 11.4018.072.000 FORK LOWER LEG BUMP STOP - 29 - SID RLC A1/SID XX/RL B1 (2017+)/ SID B4 (2020), REBA-10 A7-A9(2018-2025) 11.4018.072.000
17b Sram FORK LOWER LEG BUMP STOP - 27 - SID RLC A1/SID XX/RL B1 (2017+)/ SID B4 (2020+), REBA-10 A7-A9(2018-2025) 11.4018.072.001 FORK LOWER LEG BUMP STOP - 27 - SID RLC A1/SID XX/RL B1 (2017+)/ SID B4 (2020+), REBA-10 A7-A9(2018-2025) 11.4018.072.001
ns Sram FORK COMPRESSION DAMPER - REMOTE REVERSE PULL (PULL CABLE TO OPEN) MOCO REMOTE (INCLUDES SPOOL, CABLE CLAMP) TREK SID B1/REBA-10 A7-A9 (2018-2025) 11.4018.097.000 FORK COMPRESSION DAMPER - REMOTE REVERSE PULL (PULL CABLE TO OPEN) MOCO REMOTE (INCLUDES SPOOL, CABLE CLAMP) TREK SID B1/REBA-10 A7-A9 (2018-2025) 11.4018.097.000
ns 11.4118.107.000 SCHRADER AIR CAP - (INCLUDES CAP AND O-RING) - ROCKSHOX UNIVERSAL AIR CAP FOR FORKS AND SHOCKS 11.4118.107.000
ns Sram FORK LOWER LEG DUST SEAL INSTALLATION TOOL 32MM (FOR FLANGELESS AND FLANGED DUST SEALS) 00.4318.031.000 FORK LOWER LEG DUST SEAL INSTALLATION TOOL 32MM (FOR FLANGELESS AND FLANGED DUST SEALS) 00.4318.031.000
ns Sram FORK TOP CAP/CASSETTE TOOL (FOR SRAM/SHIMANO CASSETTES) - PIKE, LYRIK, ZEB, BOXXER, SID, REVELATION, REBA, AND PARAGON FORKS 00.4318.012.003 FORK TOP CAP/CASSETTE TOOL (FOR SRAM/SHIMANO CASSETTES) - PIKE, LYRIK, ZEB, BOXXER, SID, REVELATION, REBA, AND PARAGON FORKS 00.4318.012.003
ns 00.4318.018.000 ROCKSHOX SUSPENSION CLEANER 16.9 OZ. (FOR USE WITH ALL SUSPENSION PRODUCTS) 00.4318.018.000
ns Sram HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010 HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010
ns Sram REAR SHOCK SCHRADER VALVE REMOVAL TOOL ROCKSHOX 00.4315.022.010 REAR SHOCK SCHRADER VALVE REMOVAL TOOL ROCKSHOX 00.4315.022.010
ns Sram ROCKSHOX SUSPENSION OIL, 5WT, 120ML BOTTLE - FORK DAMPER 11.4315.021.020 ROCKSHOX SUSPENSION OIL, 5WT, 120ML BOTTLE - FORK DAMPER 11.4315.021.020
ns Sram ROCKSHOX SUSPENSION OIL, 5WT, 1 LITER BOTTLE - FORK DAMPER 11.4015.354.010 ROCKSHOX SUSPENSION OIL, 5WT, 1 LITER BOTTLE - FORK DAMPER 11.4015.354.010
ns Sram ROCKSHOX SUSPENSION OIL, 15WT, 120ML BOTTLE - LOWER LEGS 11.4315.021.040 ROCKSHOX SUSPENSION OIL, 15WT, 120ML BOTTLE - LOWER LEGS 11.4315.021.040
ns Sram ROCKSHOX SUSPENSION OIL, 15WT, 1 LITER BOTTLE - LOWER LEGS 11.4015.354.030 ROCKSHOX SUSPENSION OIL, 15WT, 1 LITER BOTTLE - LOWER LEGS 11.4015.354.030
ns Sram GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS, REVERB SERVICE 00.4318.008.000 GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS, REVERB SERVICE 00.4318.008.000
ns Sram GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS, REVERB SERVICE00.4318.008.001 GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS, REVERB SERVICE 00.4318.008.001
