Sram GUIDE ULTIMATE - HYDRAULIC DISC BRAKE - CALIPERS

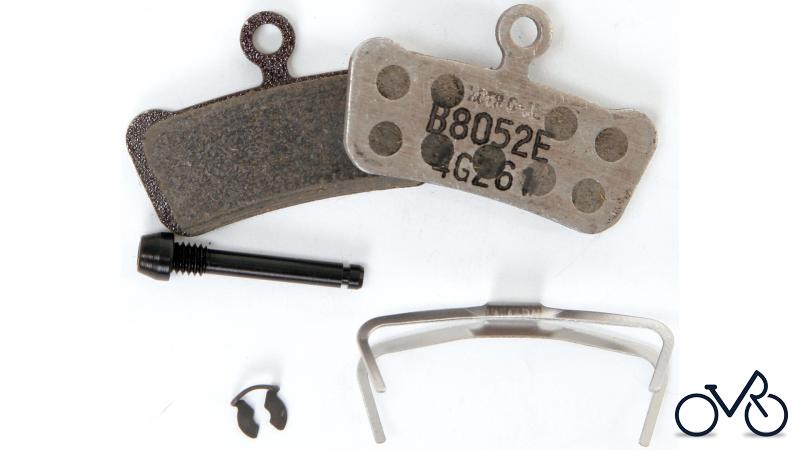

Disc Brake Pads Organic/Alum, (1 set) - Trail/Guide

Article Number:

00.5318.003.003

Pos:

35.70 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: delivery time approx. 5 working days.

Here you will find the spare parts drawing for Sram Sram GUIDE ULTIMATE - HYDRAULIC DISC BRAKE - CALIPERS. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
01	11.5018.020.002	Caliper Piston Kit (includes 2-16mm & 2-14mm Aluminum caliper pistons, seals & orings) - Guide Ultimate 11.5018.020.002
02	11.5018.021.003	Caliper Hardware Kit (includes Ti body bolts, Ti banjo bolt, bleed screw, pad pin) - Guide Ultimate 11.5018.021.003
03	11.5018.006.001	Pad Spreader Guide Ultimate Qty 2 11.5018.006.001
04	11.5018.033.000	Pad Pin Kit, Stainless Steel, Qty 2 - Guide Ultimate 11.5018.033.000
05	11.5018.008.024	Caliper Assembly Standard (non-CPS) Artic Grey (assembled, no hose) - Guide Ultimate 11.5018.008.024
05	11.5018.008.025	Caliper Assembly Standard (non-CPS) Black Anodized (assembled, no hose) - Guide Ultimate 11.5018.008.025
06	00.5318.003.003	Disc Brake Pads Organic/Alum, (1 set) - Trail/Guide 00.5318.003.003
06	00.5318.003.004	Disc Brake Pads Organic/Steel, (1 set) - Trail/Guide 00.5318.003.004
06	00.5318.003.005	Disc Brake Pads Sintered/Steel, (1 set) - Trail/Guide 00.5318.003.005
07	00.5016.168.150	Hydraulic Line Kit - Guide Ultimate, 2000mm, Black, Qty 1 00.5016.168.150
07	00.5016.168.160	Hydraulic Line Kit - Guide Ultimate, 2000mm, White, Qty 1 00.5016.168.160
ns	11.5309.765.000	Hydraulic Disc Brake Hose Fitting Kit, Qty 1 (threaded hose barb, comp fitting, comp nut) 11.5309.765.000
ns	11.5309.766.000	Hydraulic Disc Brake Compression Hose Nut, Qty 5 11.5309.766.000
ns	11.5311.555.000	Hydraulic Disc Brake Compression Hose Fitting, Qty 10 11.5311.555.000
ns	11.5311.556.000	Hydraulic Disc Brake Hose Barb, Threaded, Qty 10 11.5311.556.000
08	00.5318.015.001	SRAM Tool Bleeding Edge (works with Avid Pro Bleed Kits) - S4 Caliper, Guide Ultimate 00.5318.015.001
ns	00.5318.016.000	Standard Brake Bleed Kit (includes 2 syringes/fittings, bleed blocks, Torx tool, Crow’s foot, Bleeding Edge Fitting, DOT 5.1 hydraulic fluid) - SRAM X0, XX, Guide, HydroR 00.5318.016.000
ns	00.5318.016.001	Standard Brake Bleed Kit (includes 2 syringes/fittings, bleed blocks, Torx tool, Crow’s foot, Bleeding Edge Fitting) - SRAM X0, XX, Guide, HydroR 00.5318.016.001
ns	00.5318.017.000	DOT 5.1 Hydraulic Brake Fluid 4oz(120ml) - SRAM 00.5318.017.000
ns	11.5018.035.000	SRAM Guide Spare Parts Tacklebox - Disc Brake 11.5018.035.000
