Shimano GRX Front Derailleur (2x11-speed) FD-RX810-F FD-RX810-F-LE

GRX Front Derailleur (2x11-speed) FD-RX810-F FD-RX810-F-LE FD Front Derailleur - Umwerfer

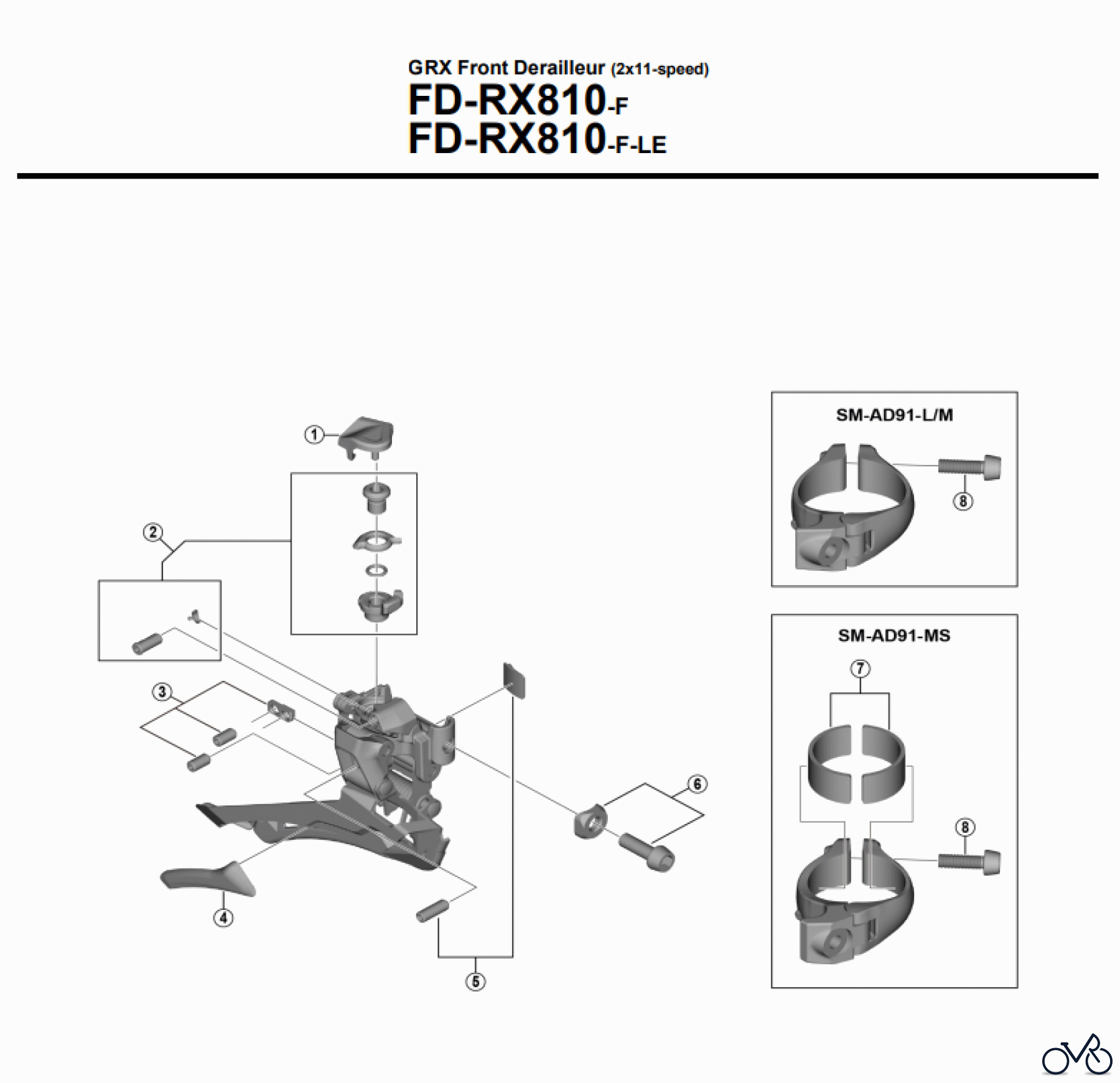

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer GRX Front Derailleur (2x11-speed) FD-RX810-F FD-RX810-F-LE. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5ZS22000	Link cover A Y5ZS22000
2	Y-2BA98010	Cable fixing screw unit and cable adjust screw unit A Y2BA98010
3	Y-5ZS98070	Adjust screws and plate A Y5ZS98070
4	Y-2BA12000	Inner skid plate A Y2BA12000
5	Y-2BA98020	Support screw and plate A Y2BA98020
6	Y-5NF98060	Clamp screw (M5 x 15) and radius washer A Y5NF98060
7	Y-5P198030	Clamp band adapter unit for S-size / diameter 28.6 mm A Y5P198030
8	Y-5ZS39000	Clamp screw (M5 x 17) A Y5ZS39000
