Shimano WH-R9270-C50-TL-F-4830 DURA-ACE

WH-R9270-C50-TL-F-4830 DURA-ACE WH Wheels - Laufräder

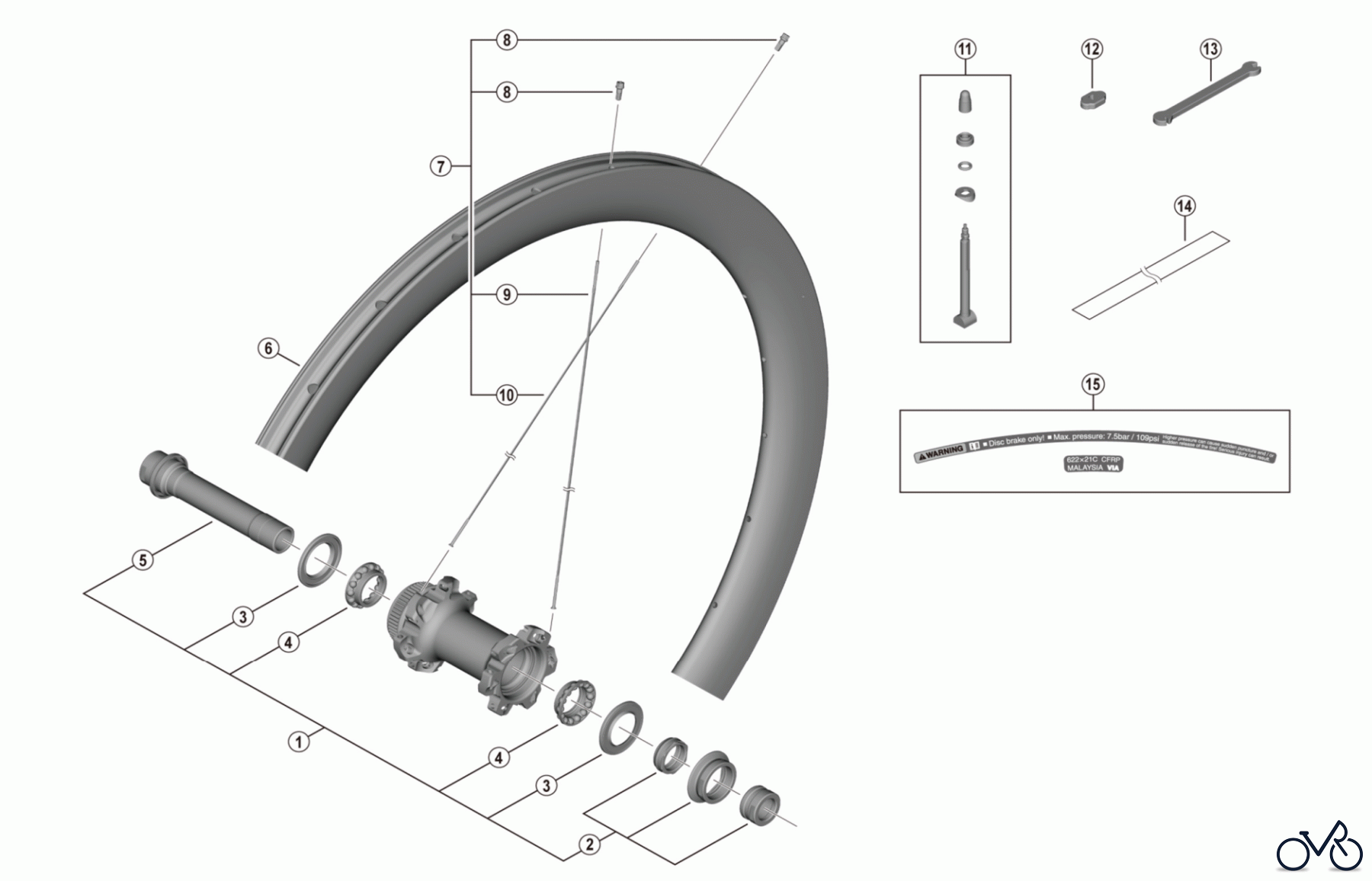

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-R9270-C50-TL-F-4830 DURA-ACE. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0MK98010	Complete hub axle Y0MK98010
2	Y-0MK98020	Right hand lock nut unit Y0MK98020
3	Y-0MK09000	Seal ring Y0MK09000
4	Y-0AY98030	Ball retainer (5/32") Y0AY98030
5	Y-0MK98030	Hub axle unit Y0MK98030
6	E-WHRIMZ2F6E	Rim {24H} EWHRIMZ2F6E
7	E-WHSPOKEY274Y	Spoke unit {spoke (269 mm x 12 pcs. / 267 mm x 12 pcs.) / nipple (24 pcs.)} EWHSPOKEY274Y
8	Y-0MKN1000	Small nipple 14G Y0MKN1000
9	Y-0MKS1110	Right hand spoke (269 mm) Y0MKS1110
10	Y-0MGS1100	Left hand spoke (267 mm) Y0MGS1100
11	Y-0MG98010	Valve unit Y0MG98010
12	Y-4RJ10000	Valve tool Y4RJ10000
13	Y-0MK14000	TL-WHR92 Nipple wrench 3.4 Y0MK14000
14	Y-0MG50000	Tubeless tape Y0MG50000
15	Y-0MG98020	Rim sticker unit Y0MG98020
