Shimano WH-RX880-TL-R12-700C (5019) GRX Rear Wheel 12-speed

Left-hand seal ring

Article Number:

Y-27X14000

Pos:

no longer available

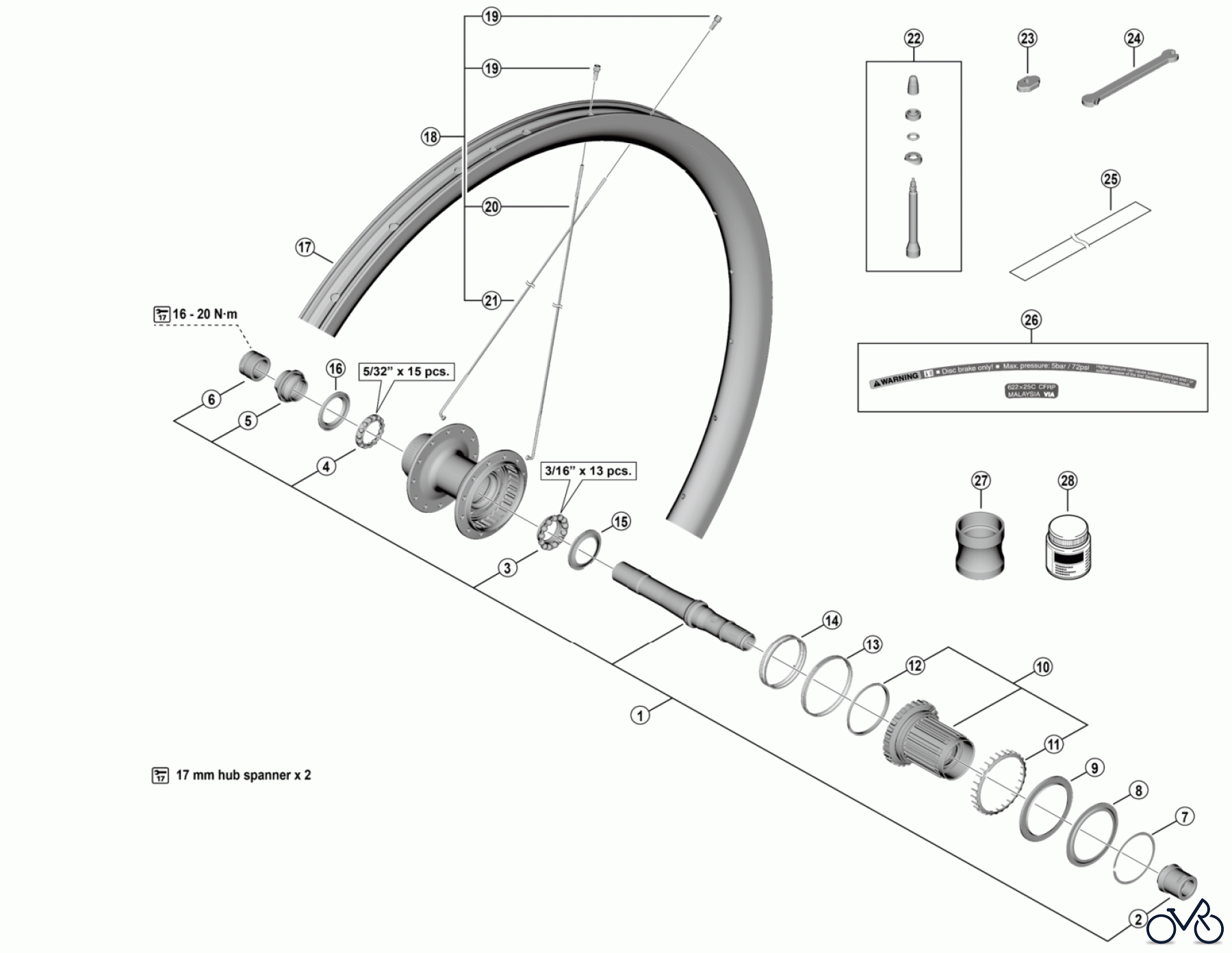

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-RX880-TL-R12-700C (5019) GRX Rear Wheel 12-speed. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0SJ98030	Complete hub axle Y0SJ98030
2	Y-0SJ98040	Right-hand cap unit Y0SJ98040
3	Y-3FL98030	Right-hand ball retainer (3/16" x 13) Y3FL98030
4	Y-07B98030	Left-hand ball retainer (5/32" x 15) Y07B98030
5	Y-0SJ98050	Left-hand cone with dust cover Y0SJ98050
6	Y-0SJ9803T	Left-hand lock nut Y0SJ9803T
7	Y-3FM28030	Stop ring Y3FM28030
8	Y-3FM27030	Outer dust cover Y3FM27030
9	Y-3FM26030	Outer seal ring Y3FM26030
10	Y-0SJ98010	Complete freewheel body (HG spline L2) Y0SJ98010
10	Y-0SJ98020	Complete freewheel body (MICRO SPLINE) Y0SJ98020
11	Y-3FM14000	Spacer Y3FM14000
12	Y-3FM11000	Slider Y3FM11000
13	Y-3FM10000	Spring Y3FM10000
14	Y-0ML07000	Coil spring Y0ML07000
15	Y-3G112000	Inner cover Y3G112000
16	Y-27X14000	Left-hand seal ring Y27X14000
17	E-WHRIMZ0004	Rim {24H} EWHRIMZ0004
18	E-WHSPOKEY0004	Spoke unit {spoke (279 mm x 12 pcs. / 280 mm x 12 pcs.) / nipple (24 pcs.)} EWHSPOKEY0004
19	Y-0MKN1000	Small nipple 14G Y0MKN1000
20	Y-0SJ9801T	Right-hand spoke (279 mm) Y0SJ9801T
21	Y-0SJ9802T	Left-hand spoke (280 mm) Y0SJ9802T
22	Y-0S198010	Valve unit Y0S198010
23	Y-4RJ10000	Valve tool Y4RJ10000
24	Y-0MK14000	TL-WHR92 Nipple wrench 3.4 Y0MK14000
25	Y-0S19802T	Tubeless tape Y0S19802T
26	Y-0S198020	Rim sticker unit Y0S198020
27	Y-1Y19801T	TL-FH17A Seal ring presser Y1Y19801T
28	Y-38Z98000	Seal grease for freehub (50 g) Y38Z98000
