Shimano WH-RS710-C32-TL-F (-5025)

Rim {24H}

Article Number:

E-WHRIMZ000

Pos:

no longer available

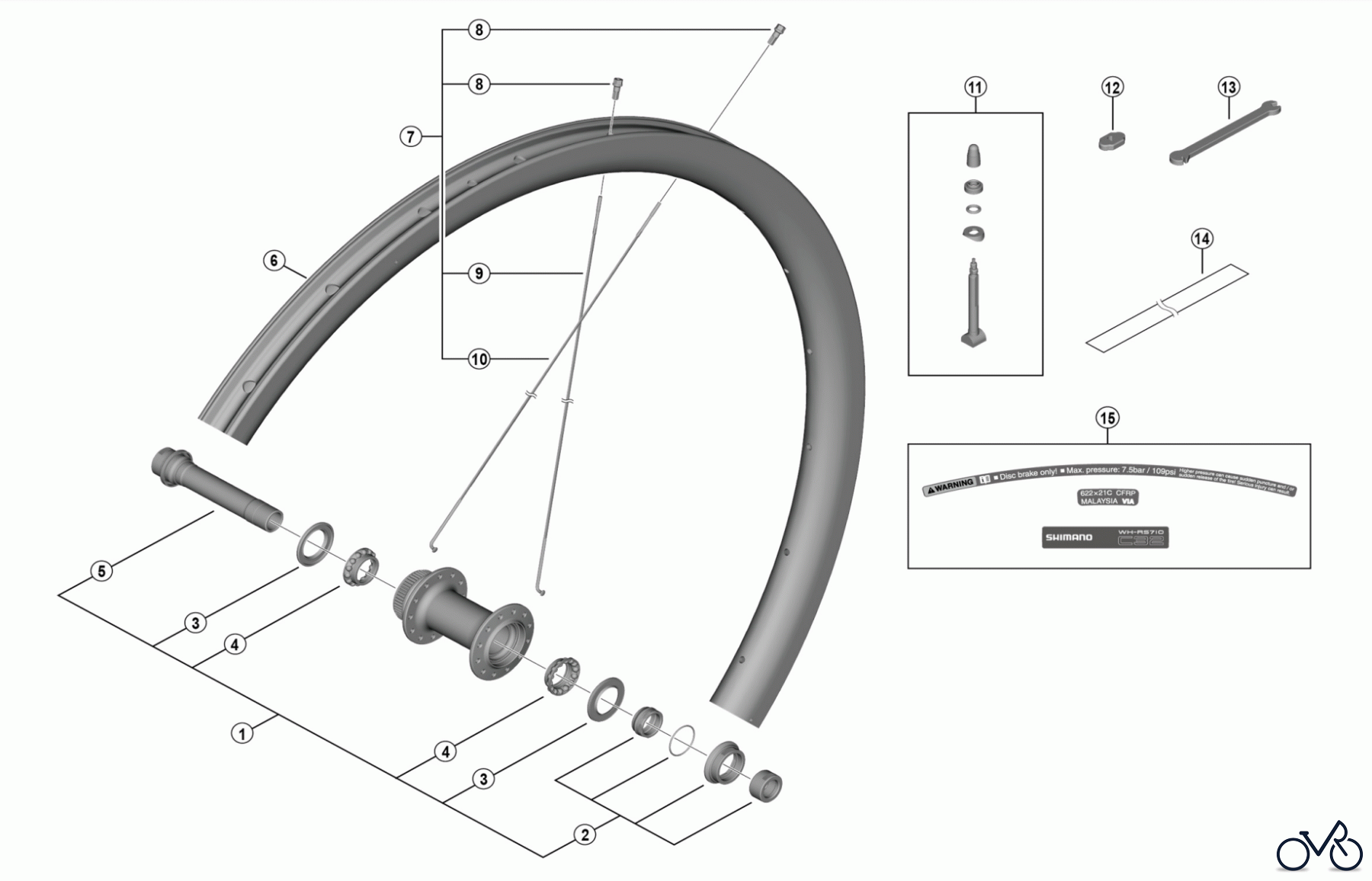

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-RS710-C32-TL-F (-5025). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0S498010	Complete hub axle Y0S498010
2	Y-0H198020	Right hand lock nut unit Y0H198020
3	Y-26D10000	Seal ring Y26D10000
4	Y-0S498020	Ball retainer (5/32") Y0S498020
5	Y-0S498030	Hub axle unit Y0S498030
6	E-WHRIMZ000	Rim {24H} EWHRIMZ000
7	E-WHSPOKEY0000	Spoke unit {spoke (283 mm x 12 pcs. / 281.5 mm x 12 pcs.) / nipple (24 pcs.)} EWHSPOKEY0000
8	Y-0MKN1000	Small nipple 14G Y0MKN1000
9	Y-0S49801T	Right hand spoke (283 mm) Y0S49801T
10	Y-0S49802T	Left hand spoke (281.5 mm) Y0S49802T
11	Y-0S498040	Valve unit Y0S498040
12	Y-4RJ10000	Valve tool Y4RJ10000
13	Y-0MK14000	TL-WHR92 Nipple wrench 3.4 Y0MK14000
14	Y-0MG50000	Tubeless tape Y0MG50000
15	Y-0S498050	Rim sticker unit Y0S498050
