Shimano RD-M6000-GS (-4183A) DEORE Rear Derailleur (10-speed)

Cable Fixing Bolt (M5 x 9.2) & Plate

Article Number:

Y-3E498050

Pos:

4.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

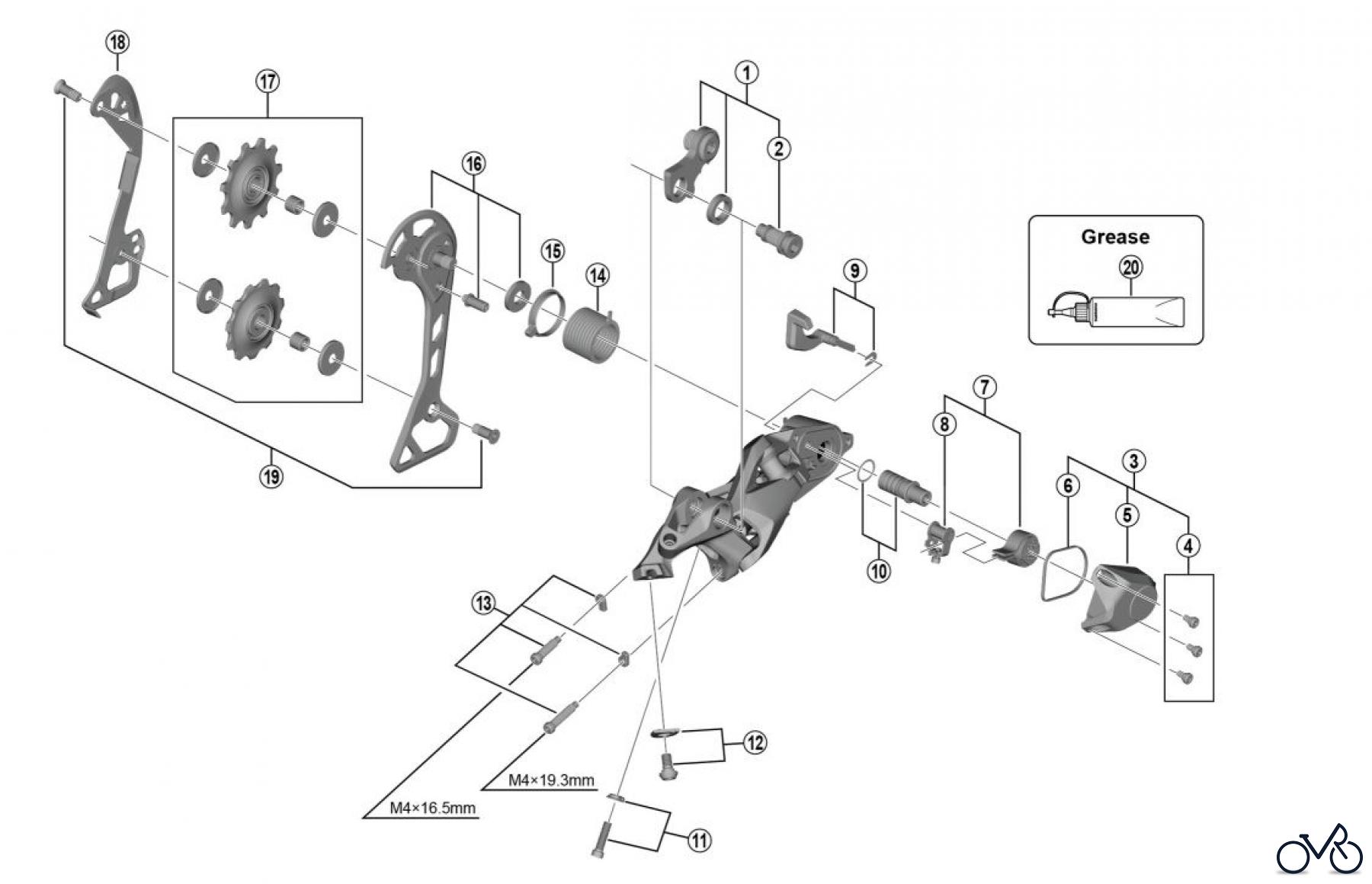

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-M6000-GS (-4183A) DEORE Rear Derailleur (10-speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5YX98020	Bracket Axle Unit (for normal type) A Y5YX98020
2	Y-5RT26000	B-Axle 2 (for Direct Mount type) A Y5RT26000
3	Y-3E498080	P-Cover Unit Y3E498080
4	Y-5Y198070	P-Cover Bolt Set (3 pcs.) A Y5Y198070
5	Y-3E443000	P-Cover Y3E443000
6	Y-5RT16000	P-Cover Packing A Y5RT16000
7	Y-3E498030	Stabilizer Unit A Y3E498030
8	Y-3E498040	Cam Unit Y3E498040
9	Y-5YX98040	Switch Lever Unit & Fixing Plate A Y5YX98040
10	Y-5PV98060	P-Axle & O-Ring A Y5PV98060
11	Y-5YX98050	End Adjust Bolt (M4 x 18) & Plate A Y5YX98050
12	Y-3E498050	Cable Fixing Bolt (M5 x 9.2) & Plate Y3E498050
13	Y-5YX98060	Stroke Adjusting Screws & Plate A Y5YX98060
14	Y-5PV17000	P-Tension Spring A Y5PV17000
15	Y-5PV24000	P-Seal Ring A Y5PV24000
16	Y-5YX98070	Outer Plate Assembly (GS) A Y5YX98070
17	Y-3E498010	Tension & Guide Pulley Set A Y3E498010
18	Y-5YX16000	Inner Plate (GS) A Y5YX16000
19	Y-50J98070	Pulley Bolt (M5 x 12) 2 pcs. A Y50J98070
20	Y-04121000	New Grease for Stabilizer (Net. 50g) A Y04121000
20	Y-04120800	Grease for Stabilizer (Net. 100g) Y04120800
